Genzler Amplification
Genzler Magellan 800+ High Output 800W Dual Channel Bass Amp Head - MG-800+
Genzler Magellan 800+ High Output 800W Dual Channel Bass Amp Head - MG-800+
GEN_MG-800+Couldn't load pickup availability
After 10 years, Genzler Amplification is proud to offer the next generation of their 800-watt professional tour class bass amp - the new Magellan 800+. The Magellan 800 Plus carries forward the legacy of the Magellan 800 with even greater performance with several new features, improved preamp circuity, and an expanded EQ network, all within the same rugged chassis as the original.
The Genzler Magellan 800+ delivers the most powerful full featured compact bass amp available in its class. This latest revision offers improved dynamic response and feel along with superior low-noise thresholds and increased dynamic headroom. This is exactly what players have come to expect from Genzler! Innovation, performance, reliability, and versatility.
The Genzler Magellan 800+ provides the tonal palette needed to cover all bassists amplification needs from natural pristine transparent tone reproduction of your bass to classic vintage harmonic textures and dynamics. All of this in an all aluminum chassis weighing only 6.25 pounds!
- Updated input circuity for enhanced instrument loading
- Foot-switchable Drive circuitry (sold separately)
- Variable HPS (High Pass FIlter)
- Dual Contour Circuit - Foot-switchable and separately adjustable
- 4-Band Active EQ w/ two sweepable midrange frequencies
- Highest-grade op-amps through-out for lower noise and dynamic headroom

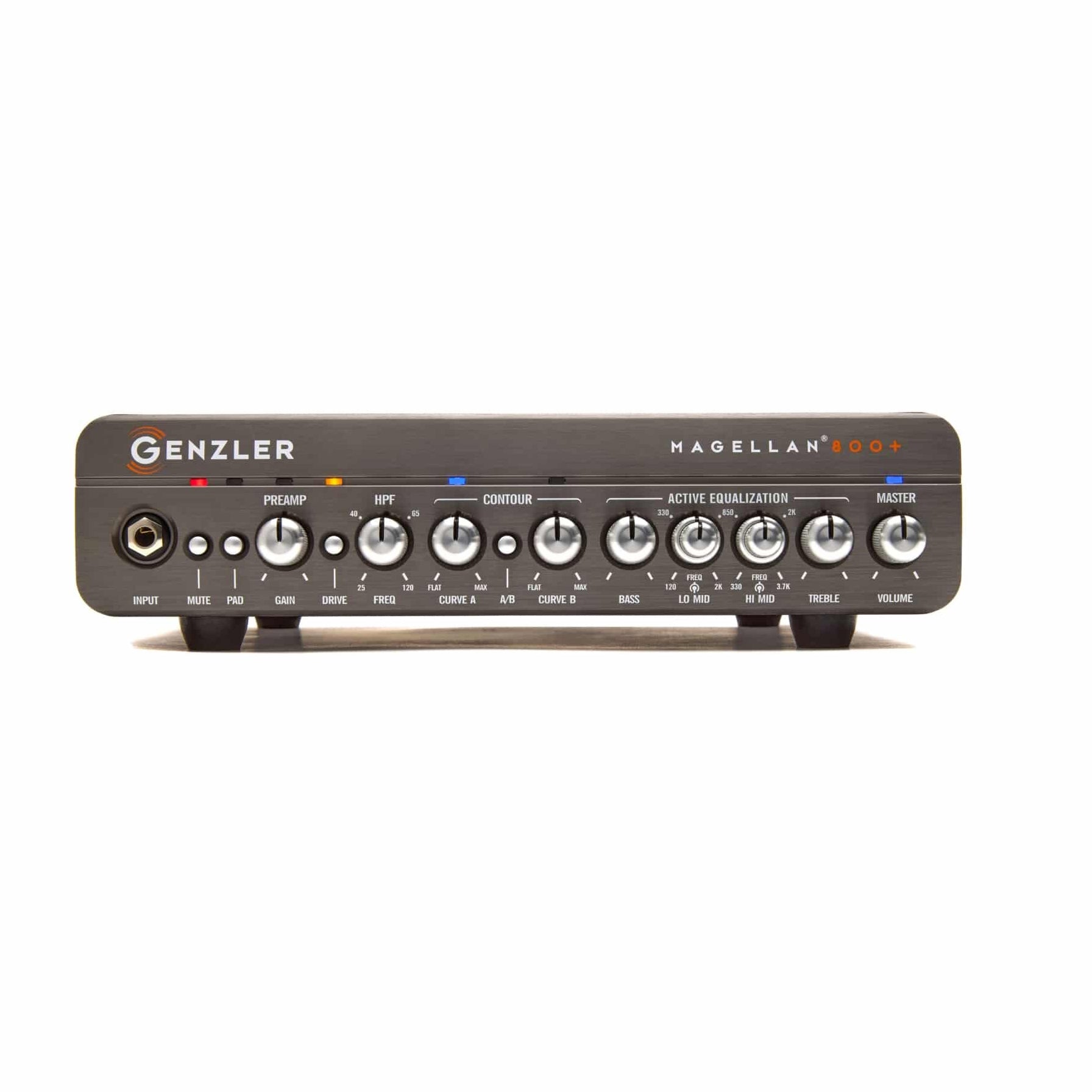

FRONT PANEL FEATURES:
- ¼” INPUT
- SIGNAL MUTE SWITCH
- INPUT PAD (- 8.5dB)
- GAIN LEVEL CONTROL
- DRIVE CHANNEL SWITCH — Voiced for a Driven Tonal Signature and Harmonic Texture, Controlled by Gain Level Control & Master Volume
- HPF—HIGH PASS FILTER — Variable from 25 – 120Hz
- DUAL-CURVE VARIABLE CONTOUR CIRCUITRY — Footswitchable
- Curve A — Classic to Modern — Smooth Mid Scoop Curve w/Increased Lows & Highs
- Curve B — Thicker to Vintage — Low-Mid Bump w/Tapered Top End
- Flat Position — Full Bypass
- ACTIVE 4 BAND EQ w/2 PARAMETRIC MID CONTROLS
- Bass: +/- 15dB @ 75Hz
- Lo Mid: +/- 15dB variable from 120Hz – 2K Hz
- High Mid: +/- 15dB variable from 330Hz – 3.7K Hz
- Treble: +/- 15dB @ 6K Hz
- MASTER VOLUME CONTROL

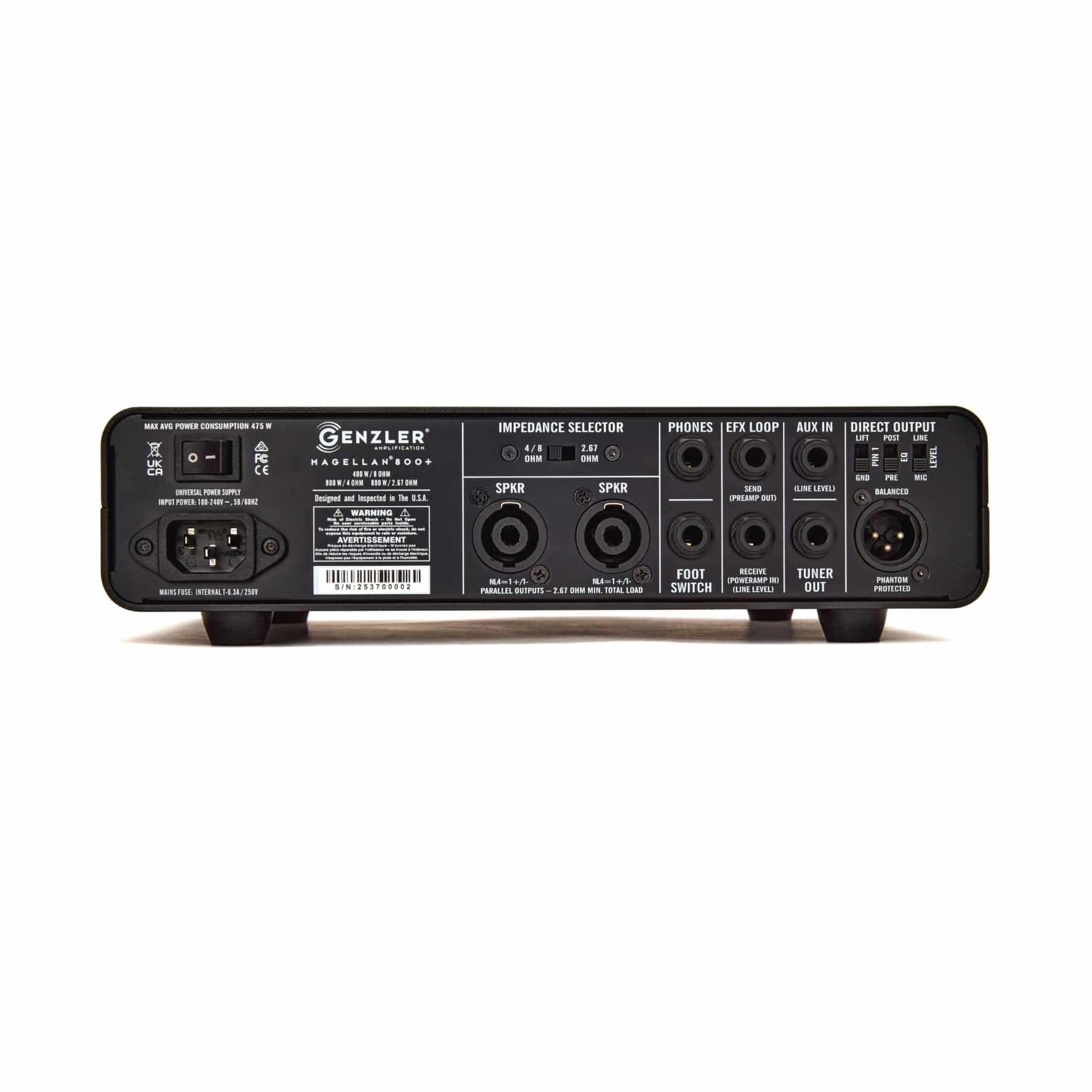

REAR PANEL FEATURES —-
- IMPEDANCE SELECTOR SWITCH — 8/4 ohm to 2.67 ohms
- DUAL SPEAKON® SPEAKER OUTPUTS
- HEADPHONE OUTPUT
- FOOTSWITCH INPUT JACK — For optional 2 button footswitch
- EFFECTS LOOP
- TUNER OUTPUT JACK
- DIRECT OUTPUT INTERFACE — PRE/POST
- THERMAL SENSING VIARIABLE SPEED FAN COOLING
- AIRCRAFT-GRADE, ALL ALUMINUM CHASSIS w/EXTRUDED ALUMINUM FRONT PANEL
- POWER AMPLIFIER — State of the art, Class D power amplifier and high frequency auto-sensing universal switch-mode power supply. Auto senses line voltage from 100 – 240 Vots
SPECIFICATIONS:
- POWER OUTPUT: 400W/8 Ohms, 800W/4 Ohms and 800W/2.67 Ohms
- MINIMUM SPEAKER LOAD: 67 Ohms
- OPERATING POWER CONDITION: 100 – 240V, 50/60 Hz
- DIMENSIONS: 3”H X 11.25”W X 10.5”D (76.2mm H x 285.75mm W x 266.7mm D)
- WEIGHT: 6.25 LBS (2.83Kg)
SHIPPING DATA:
- DIMENSIONS: 5”L x 13”D x 5.75”H (419.1mm x 330.2mm x 146.02mm)
- WEIGHT: 9 LBS (4.08 Kg)
