Genzler Amplification
Genzler Magellan 350 Lightweight 350W Bass Amp Head - MG-350
Genzler Magellan 350 Lightweight 350W Bass Amp Head - MG-350
GEN_MG-350 No reviews
Regular price
$649.99 USD
Regular price
Sale price
$649.99 USD
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
Genzler Magellan 350 Lightweight 350W Bass Amp Head
The Genzler Magellan 350 is the little brother of the Magellan 800 amp head. This is an even more compact and lightweight head with all the punch in a smaller package. The Genzler Magellan packs 350 watts of output power with a 3 band active EQ w/ parametric mids, dual-curve variable contour circuitry, full featured XLR direct outs and it will even handle 350 watts into 2.67 Ohms! All in a package weighting only 3.5 pounds!
Genzler Magellan 350 Features:
Clean Channel: Pristine and Articulate
Dual-Curve Variable Contour Circuitry:
- Curve A: Classic to Modern - Mid Scoop Curve
- Curve B: Thicker to Vintage - Low-Mid Bump w/ Tapered Top End
Active 3 Band EQ w/ Parametric Mid Control
Signal Mute Switch
Thermal Sensing Variable Speed Fan Cooling
Full featured XLR direct output interface
Genzler Magellan 350 Amp Power Specifications:
- Output: 175W @ 8 Ohms
- Output: 350W @ 4 Ohms
- Output: 350 W @ 2.67 Ohms
- 2.67 Ohms minimum total load
Dimensions: 9" Wide x 9.83" Deep x 2.63" Height
Weight: 3.5 Pounds
MG-350
OVERVIEW / SPECIFICATIONS:
PREAMP – all solid state analog design with integrated soft clip circuitry.
INPUT– 1Meg ohm input impedance
CHANNEL OVERVIEW – Voiced to provide natural, pristine, transparent reproduction of the bass instrument. The circuitry consists of an FET feedback type variable gain circuit that provides wide range, continuously variable gain for use with a wide range of instrument pick-ups and preamps.
CONTOUR -- continuously variable control of 2 vastly different response curves. In either CURVE position, when the SHAPE control is all the way off (CCW) the response curve is completely FLAT.
Curve A (Blue) -- a variable pre-shaped curve that boosts lows and highs while simultaneously cutting mids. The slopes are fairly gentle which keep the tone shaping very musical. This curve covers a wide range of sounds from flat to classic to modern depending on the position of the SHAPE control.
Curve B (Amber) -- a variable pre-shaped curve with attenuated high mids and highs, a low mid bump, and a slight roll-off of the lowest bass frequencies. Again, the slopes are fairly gentle which keep the tone shaping very musical. This curve is intended to provide sounds in the range of vintage amps and vintage cabinets that do not have tweeters.
ACTIVE EQUALIZATION – The MAGELLAN® 350 contains an active 3 band equalizer with a sweepable parametric mid-range frequency control.
Bass +/- 15dB boost/cut shelving curve with a corner frequency of 75Hz
Mid +/- 15dB boost/cut of the variable mid frequency selected
Freq Variable mid frequency from 150Hz-3kHz
Treble +/- 15dB boost/cut shelving curve with a corner frequency of 6kHz
POWER AMP – The MAGELLAN® 350 uses a state of the art, class D power amplifier design and a high frequency auto-sensing universal switch-mode power supply (SMPS) to achieve unprecedented high performance and lightweight packaging. There are no Voltage Switches to change or jumpers to move. This SMPS senses the line voltage from 100-240 Volts and automatically configures itself.

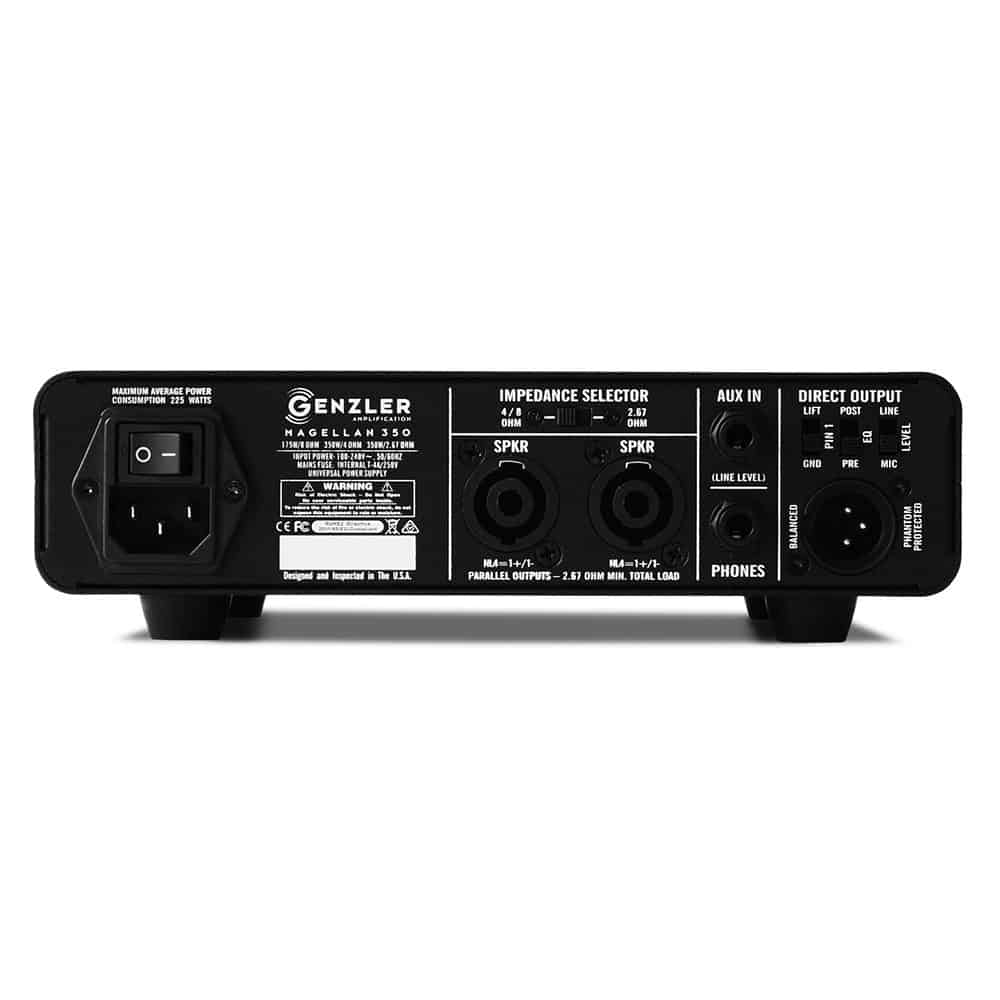

REAR PANEL
XLR Direct Output –
Mic / Line Switch
Pre / Post EQ Switch
Ground Lift Switch
Aux Input
Head Phones
Dual Speakon® Speaker Outputs
Impedance Selector Switch for 8, 4 or 2.67 ohm operation
SPECIFICATIONS:
Power Output: 175W/8 Ohms, 350W/4 Ohms and 350W/2.67 Ohms
Minimum Speaker Load: 2.67 Ohms
Operating Power condition: 100 - 240V, 50/60 Hz
Dimensions: 2.63”H X 9”W X 9.83”D (67mm H x 228.6mm W x 249.8mm D)
Weight: 3.5 LBS ( 1.75 Kg)
