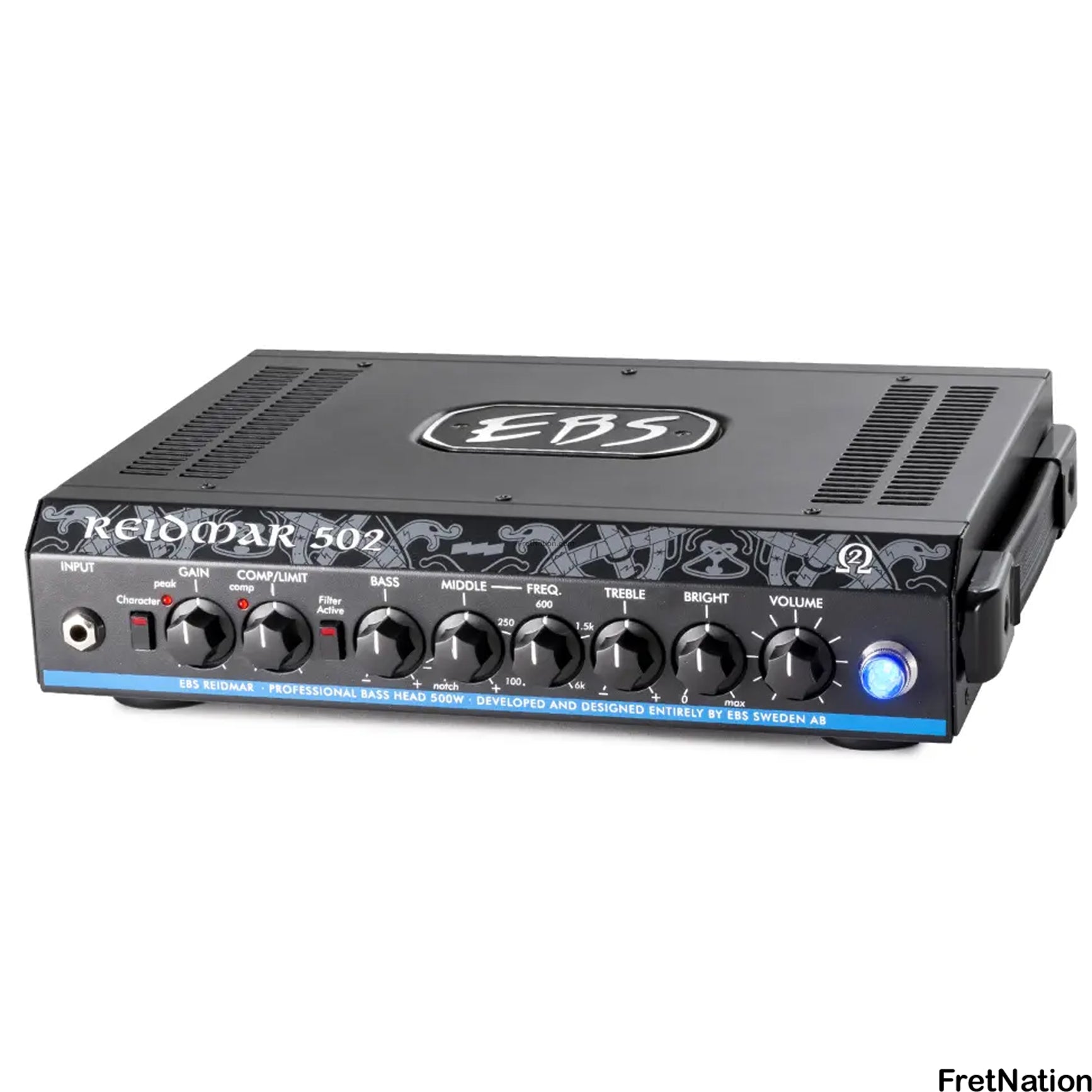

EBS Reidmar 502 Bass Class D Lightweight Bass Amplifier 500-Watt - EB-RD502

The EBS Reidmar 502 is a lightweight bass amplifier that breaks new ground with a powerful Class D power module co-developed by EBS to truly handle a 2-ohm load.

The EBS Reidmar 502 Class D bass head pumps out 500 Watts of punch, driving two 4-ohm cabinets with true 2-ohm stability which is rare for lightweight amps.  EBS's soft clip technology ensures a powerful and dynamic sound without the excessive compression typically found in compact heads, providing you with tighter lows, clear mids, and crisp clear highs at any volume.

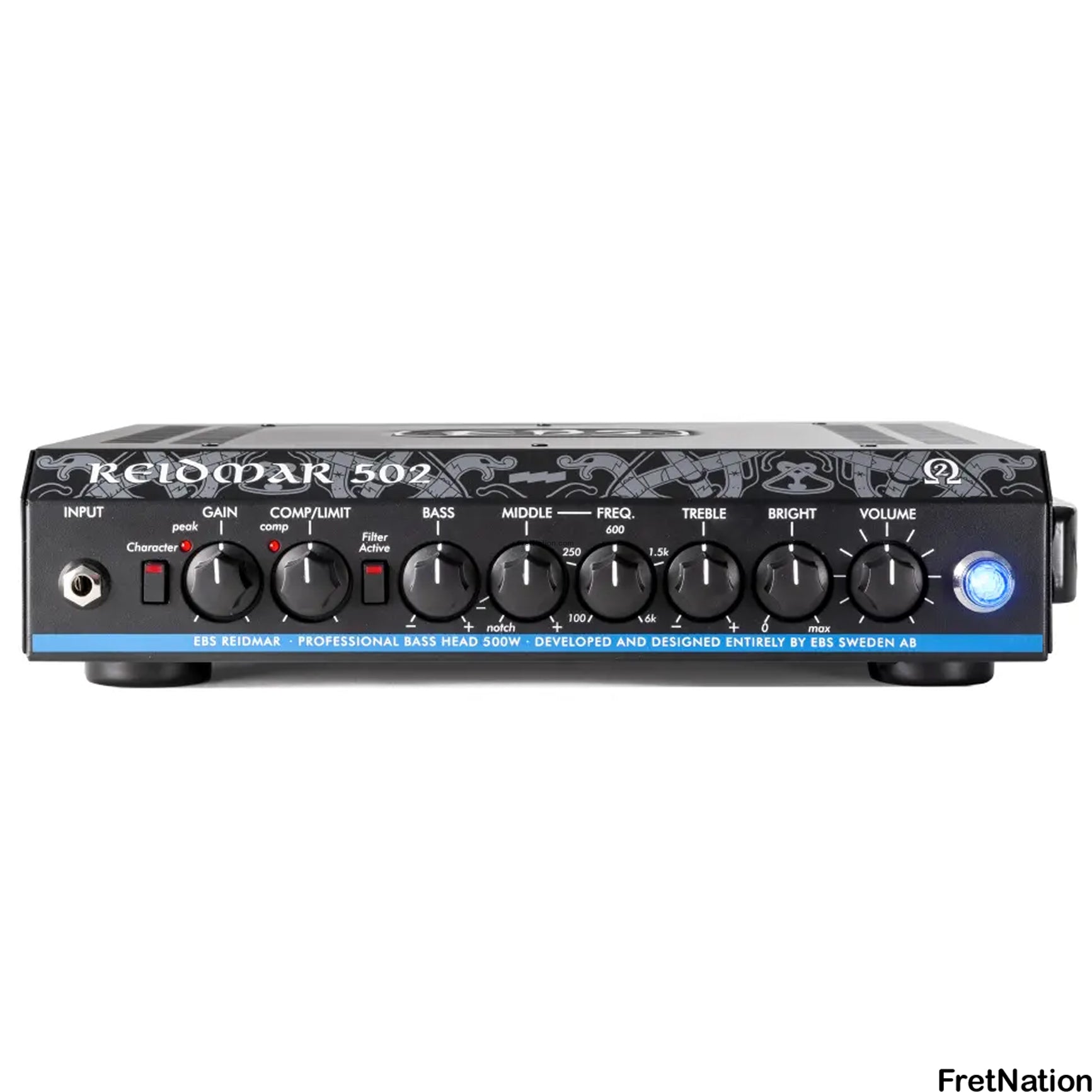

The Reidmar 502 features an Analog Preamp with adjustable compressor / limiter and a responsive 4-Band EQ for precise tonal shaping. Some extra features include an effects loop, a balanced XLR output with pre and post EQ, a ground life, a line output, and a headphone jack.  Pair this head with any EBS Cabinet (or cabinets) from compact lightweight Neoline rigs to full dual 410 stacks for stunning versatility.  (Cabs sold separately)

EBS Reidmar 502 Features:

• Type: Analog Preamp w/ 2-ohm D-Class Power Amp
• EQ: Extremely Powerful 4-Band
• Dynamic Control: Built-In Compressor / Limiter
• Character Filter: Yes
• Effects Loop: Yes

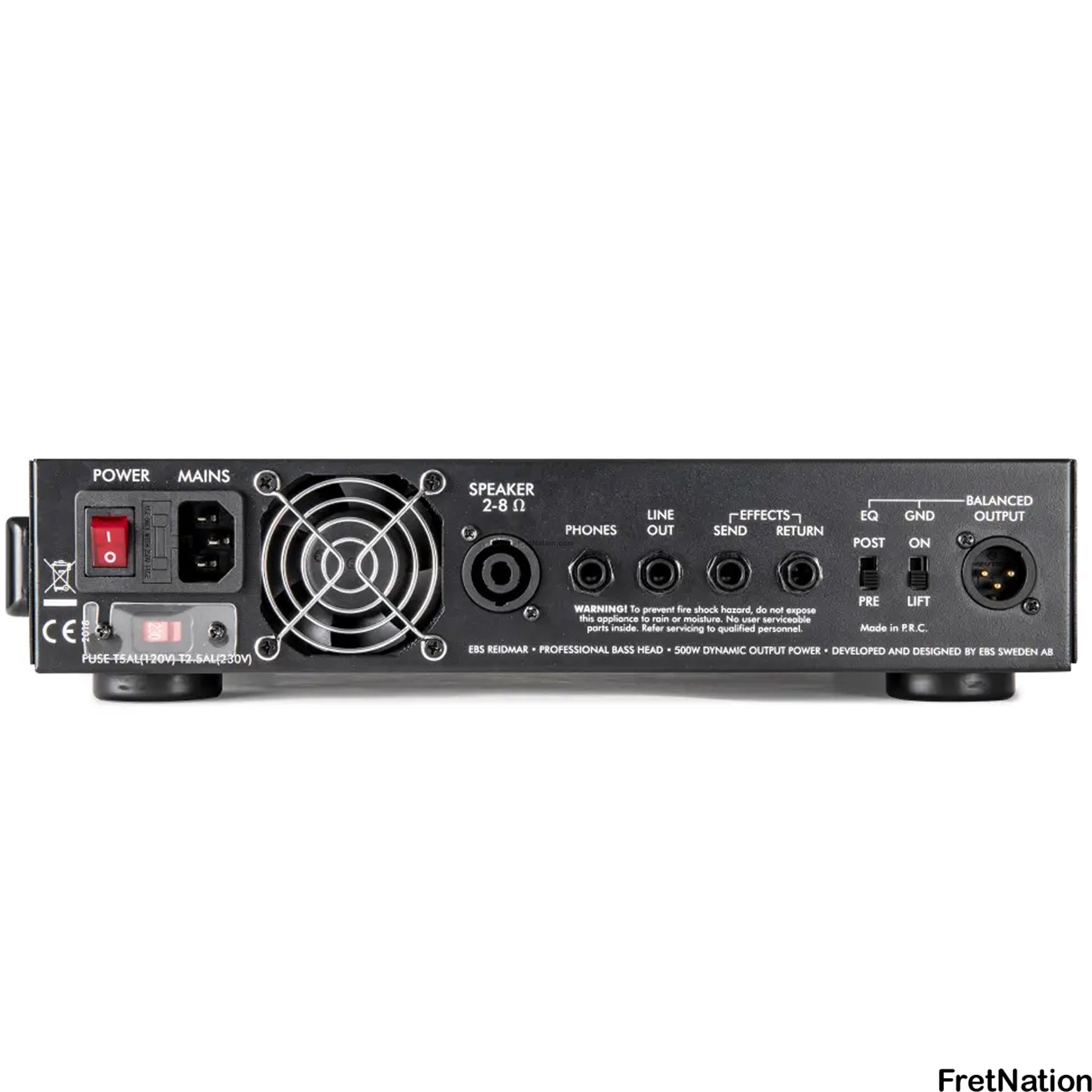

• Outputs: Balanced XLR / Line / and Headphone Out

• Power: 500 Watt @ 2-ohm

EBS Reidmar 502 Specifications:

• Input Impedance: 2Mohm
• Gain Range: -∞ to +30 dB
• Tone Controls:
  • Bass: +/-15dB @ 100Hz
  • Low Mid: +/-15dB @ 150-900Hz Q=0.9
  • High Mid: +/-15dB @ 1.2-7kHz Q=1.1
  • Treble: +/-15dB @ 10kHz
• Character Filter:
  • Shelving
  • High / Low Pass
  • +7dB @ 40Hz
  • -2dB @ 800Hz
  • +3dB @ 10kHz
• Tone Controls:
  • Bass Shelving: +/-18dB @ 60Hz,
  • Mid Bandpass Filter: 100-6000Hz +/-12-15dB
  • Treble Shelving: +/-18dB @ 6kHz
  • Bright Shelving: +/-0dB @ 10kHz
• Balanced Output:
  • -10dBv
  • Pre-Post EQ
  • Ground Lift
• Output Power:
  • 500W RMS @ 2ohms
  • 250W RMS @ 4ohms
• Speaker Impedance:
  • Minimum 2ohms
• Dimensions: 12.8" x 9.8" x 3.0" (32.5 x 25 x 7.5cm)

• Weight: 7.3lbs / 3.3kg
