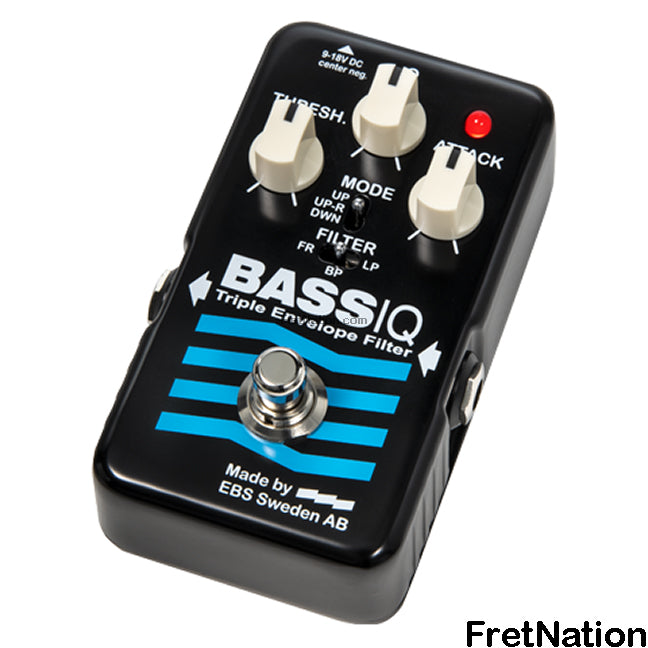

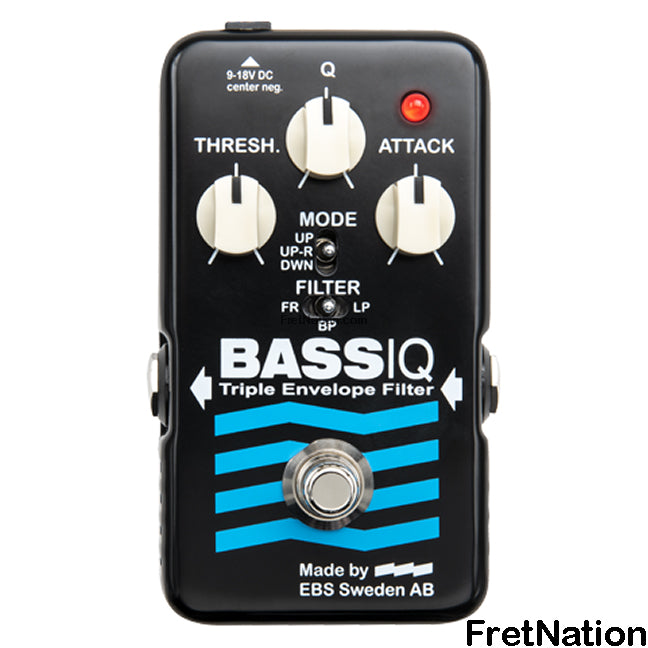

EBS Blue Label BassIQ Triple Envelope Filter Pedal - EB-IQ-BL

The EBS Bass IQ is a super responsive and versatile analog envelope filter that is as fun as it is musical!

From classic auto-wah to gritty synth-bass growls, the EBS BassIQ reacts dynamically to your playing for a truly expressive filter effect

Shape YOUR Sound:

Q, Threshold & Attack: Controls let you dial in everything from smooth sweeps to punchy funk.

Mode Selector: Switch between Up, Down, and Up-R for different filter movement styles

Filter Types: Choose Full Range, Band Pass, or Low Pass to reshape the tonal focus of your tone instantly

Deep Control: Internal trim pots adjust gain, envelope range, and high-end mix for pro-level fine-tuning.

EBS Bass IQ Blue Label Features:

• Low Range: Preserve the low end of your tone
• Usage: Suitable for live and Studio use
• Filter Type: Flexible Envelope Filter
• Controls: Q, Threshold, Attack
• Modes: Up, Up-R, Down
• Filter Options: Low Pass, Band Pass, Full Range
• Fine Tuning: Internal Controls
• True Bypass

• Dimensions: 2.6" x 4.5" x 1.9" (67 x 115 x 48mm)
• Weight: 0.70Pounds / 315g
• Power: 9, 12, or 18v DC, 55mA max (shuts off below 6v)
• Design: EBS Blue Label Pedals are designed and developed by EBS in Sweden

EBS BassIQ Envelope Specifications:

• Nominal Input Level: -10dBv
• Input Impedance: 1.8Mohms
• Output Impedance: 100 ohms
• Dry Bandwidth: 0/-2dB 20Hz-20kHz
• Filter:
  • Range: 100Hz-2.5kHz
  • Q: 0.7-15

  • Type: Low Pass, Band Pass, Full Range
  • Modes: Down / Up-Range / Up
• Attack Time: 50ms - 2s (80%)

• Type: Analog, Relay Switching

• Dimensions: 2.8" x 4.5" x 1.4" (70 x 115 x 35mm)
• EBS recommends the use of the EBS AD-9 Pro DC Adapter (not included) or Runsten Power Supply (not included)
