Darkglass Microtubes 500 112 Analog Bass Combo - 1x12" 500w - DG112A
Darkglass Microtubes 500 112 Analog Bass Combo - 1x12" 500w - DG112A
DAR_DG112A No reviews
Regular price
$1,099.99 USD
Regular price
$1,499.99 USD
Sale price
$1,099.99 USD
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
Redefining Bass with Precision
Darkglass Microtubes 500 112 Analog Bass Combo - 1x12" 500w - DG112A
- 500W 1x12 analog combo amplifier
- Analog preamp with signature VMT and B3K drives
- Studio compressor with automatic gain adjustment
- Four-band ultra quiet EQ with adjustable mid frequencies
- Pre/post XLR DI, line out, and headphone outputs
Designed for ultimate sonic quality and portability, the M Combo Series defines excellence in Analog bass tones and precision. Featuring custom-made Eminence® speakers and powered by an efficient 500 W class D power module, the M Combo Series are perfect for the musician demanding premium analog character across venues, rehearsals, and home setups.
Top Panel Features:
Input: Use this jack to connect your instrument via a standard ¼” mono instrument cable.
Headphone Output: Connect your Headphones and enjoy the analog cabinet emulation.
Passive/Active: Use this push-button switch to change from passive to active mode. If your bass is active it can have a hotter signal making the amp to distort early (feel free to use if such additional distortion is desired).
Compression: Controls the amount of dynamic compression. The make up gain is adjusted automatically.
Drive: Controls the amount of distortion that the Microtubes Engine will deliver. Press to select the drive mode: OFF/Vintage Microtubes /Microtubes B3K.
Blend: Use this knob to mix between the Clean signal and the Distortion signal.
Level: Controls Microtubes Engine’s output volume.
Low: ±12 dB @ Low shelf
Low Mids: ±12 dB @ 500 Hz/1 kHz (Press to select the frequency)
Hi Mids: ±12dB @ 1.5 kHz / 3 kHz (Press to select the frequency)
Treble: ±12dB @ High shelf
Master: Use this knob to control the overall volume of the combo. Press for Mute.
Headphone Output: Connect your Headphones and enjoy the analog cabinet emulation.
Passive/Active: Use this push-button switch to change from passive to active mode. If your bass is active it can have a hotter signal making the amp to distort early (feel free to use if such additional distortion is desired).
Compression: Controls the amount of dynamic compression. The make up gain is adjusted automatically.
Drive: Controls the amount of distortion that the Microtubes Engine will deliver. Press to select the drive mode: OFF/Vintage Microtubes /Microtubes B3K.
Blend: Use this knob to mix between the Clean signal and the Distortion signal.
Level: Controls Microtubes Engine’s output volume.
Low: ±12 dB @ Low shelf
Low Mids: ±12 dB @ 500 Hz/1 kHz (Press to select the frequency)
Hi Mids: ±12dB @ 1.5 kHz / 3 kHz (Press to select the frequency)
Treble: ±12dB @ High shelf
Master: Use this knob to control the overall volume of the combo. Press for Mute.

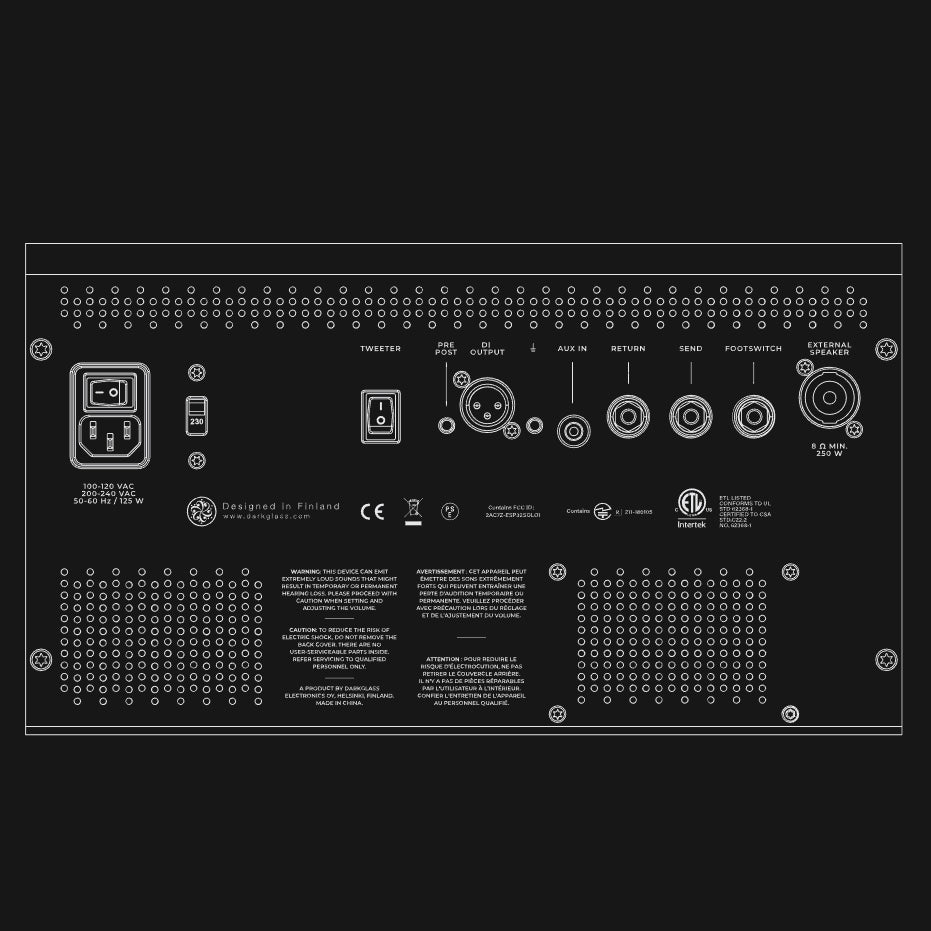

Back Panel Features
AC Power ON/OFF: Power ON the combo beast.
AC Socket: Use this connector to feed electric power to the amplifier. 100 – 230 VAC, 50-60Hz. Set the voltage selector switch to the correct position before turning on the amplifier!
Tweeter: Turn the tweeter ON/OFF.
Pre/Post: Select between the unprocessed clean DI and the processed signal.
DI Output: Use this connector to send your signal to the console, mic preamp, interface, etc.
Ground Lift: Use this control to lift the ground of the XLR output. If you are experiencing ground noise in your DI signal, try changing this control.
Aux In: Connect this to the headphone output of your laptop, cellphone, MP3 player, etc. The Aux In signal is fed only to the headphone output.
Return: Use this input to receive the signal from your outboard gear.
Send: Use this output to send the signal to your outboard gear.
Footswitch: Use to connect the Darkglass Super Intelligent Footswitch, Intelligent Footswitch or MIDI Footswitch using a 1/4″ mono instrument cable.
External Speaker: Use this connector to connect the amplifier to an external speaker cabinet. The SpeakON Combo jack allows for SpeakON or ¼” speaker cable operation. The minimum load impedance is 8 Ω. The minimum power rating must be 250 W.
WARNING: Do not use an instrument cable with this jack. Using an instrument cable can damage your amplifier.
Technicals details
Woofers: Custom Design Eminence® Speaker
Horn: Eminence® Tweeter
Power Rating RMS: 500 Watts
Dimensions:
Width: 43.0 cm / 16.9″
Height: 49.3 cm / 19.4″
Depth: 43.2 cm / 17″
Weight: 14.5 kg / 32 lb
WARNING: This device can emit extremely loud sounds that might result in temporary or permanent hearing loss. Please proceed with caution when setting and adjusting the volume.
AC Power ON/OFF: Power ON the combo beast.
AC Socket: Use this connector to feed electric power to the amplifier. 100 – 230 VAC, 50-60Hz. Set the voltage selector switch to the correct position before turning on the amplifier!
Tweeter: Turn the tweeter ON/OFF.
Pre/Post: Select between the unprocessed clean DI and the processed signal.
DI Output: Use this connector to send your signal to the console, mic preamp, interface, etc.
Ground Lift: Use this control to lift the ground of the XLR output. If you are experiencing ground noise in your DI signal, try changing this control.
Aux In: Connect this to the headphone output of your laptop, cellphone, MP3 player, etc. The Aux In signal is fed only to the headphone output.
Return: Use this input to receive the signal from your outboard gear.
Send: Use this output to send the signal to your outboard gear.
Footswitch: Use to connect the Darkglass Super Intelligent Footswitch, Intelligent Footswitch or MIDI Footswitch using a 1/4″ mono instrument cable.
External Speaker: Use this connector to connect the amplifier to an external speaker cabinet. The SpeakON Combo jack allows for SpeakON or ¼” speaker cable operation. The minimum load impedance is 8 Ω. The minimum power rating must be 250 W.
WARNING: Do not use an instrument cable with this jack. Using an instrument cable can damage your amplifier.
Technicals details
Woofers: Custom Design Eminence® Speaker
Horn: Eminence® Tweeter
Power Rating RMS: 500 Watts
Dimensions:
Width: 43.0 cm / 16.9″
Height: 49.3 cm / 19.4″
Depth: 43.2 cm / 17″
Weight: 14.5 kg / 32 lb
WARNING: This device can emit extremely loud sounds that might result in temporary or permanent hearing loss. Please proceed with caution when setting and adjusting the volume.
