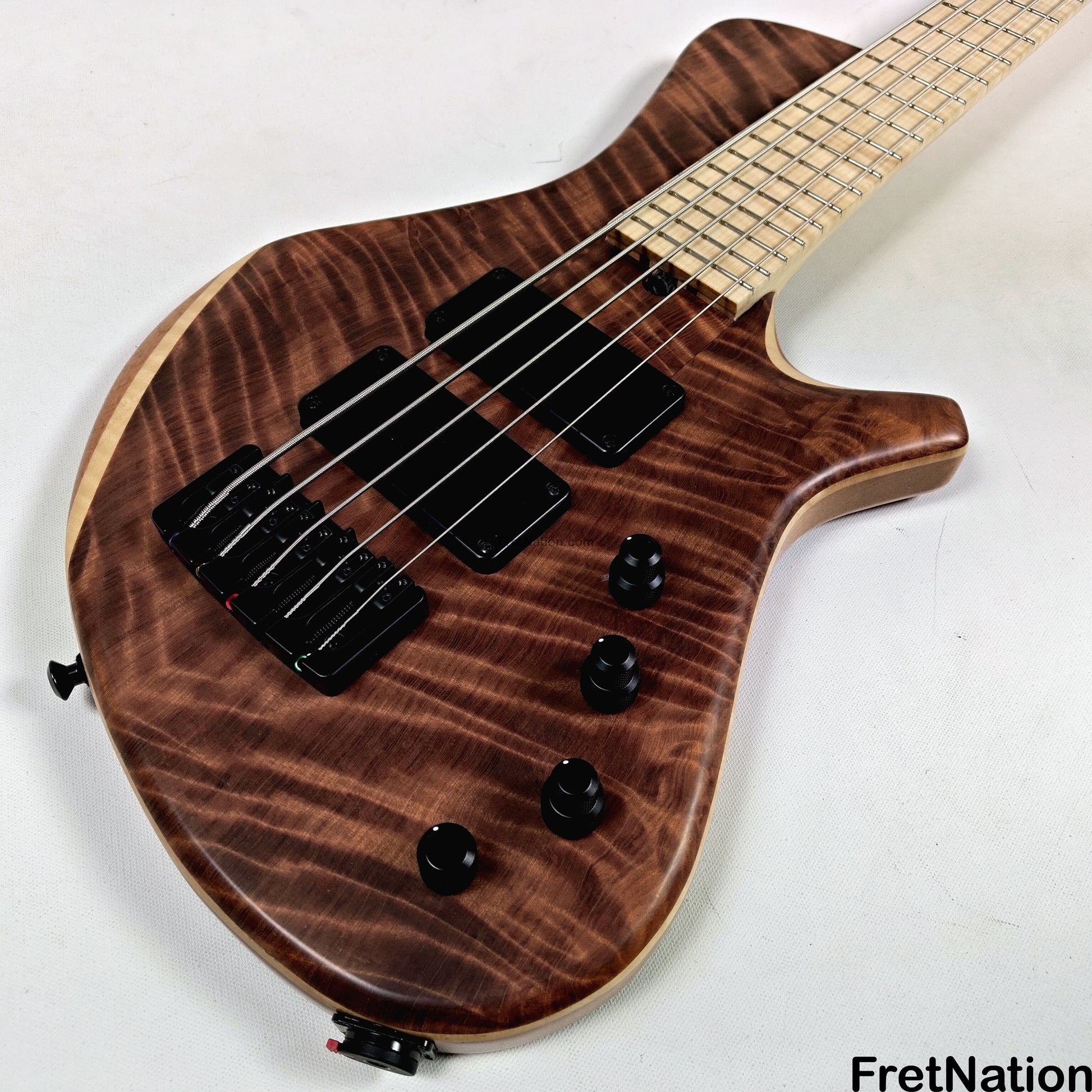

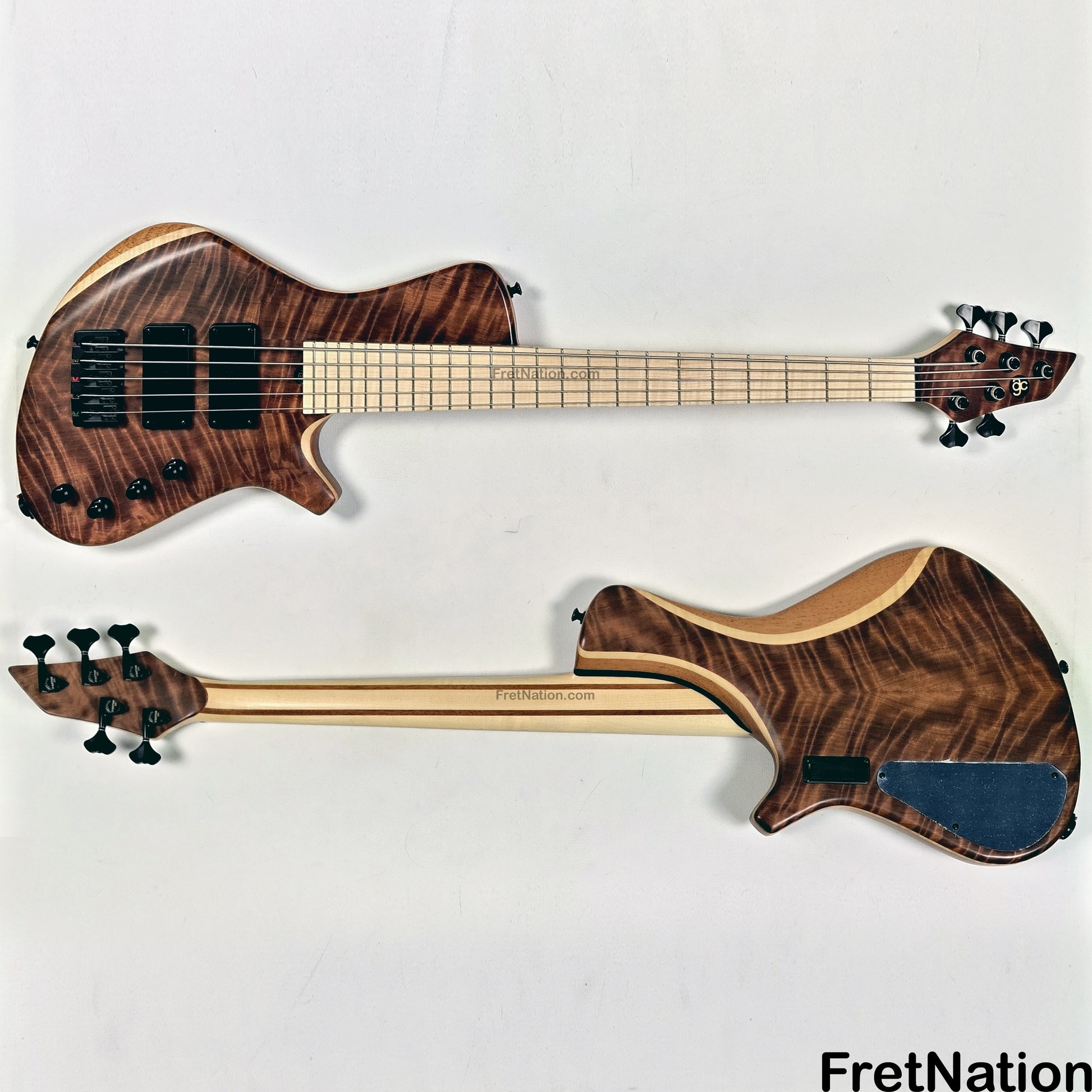

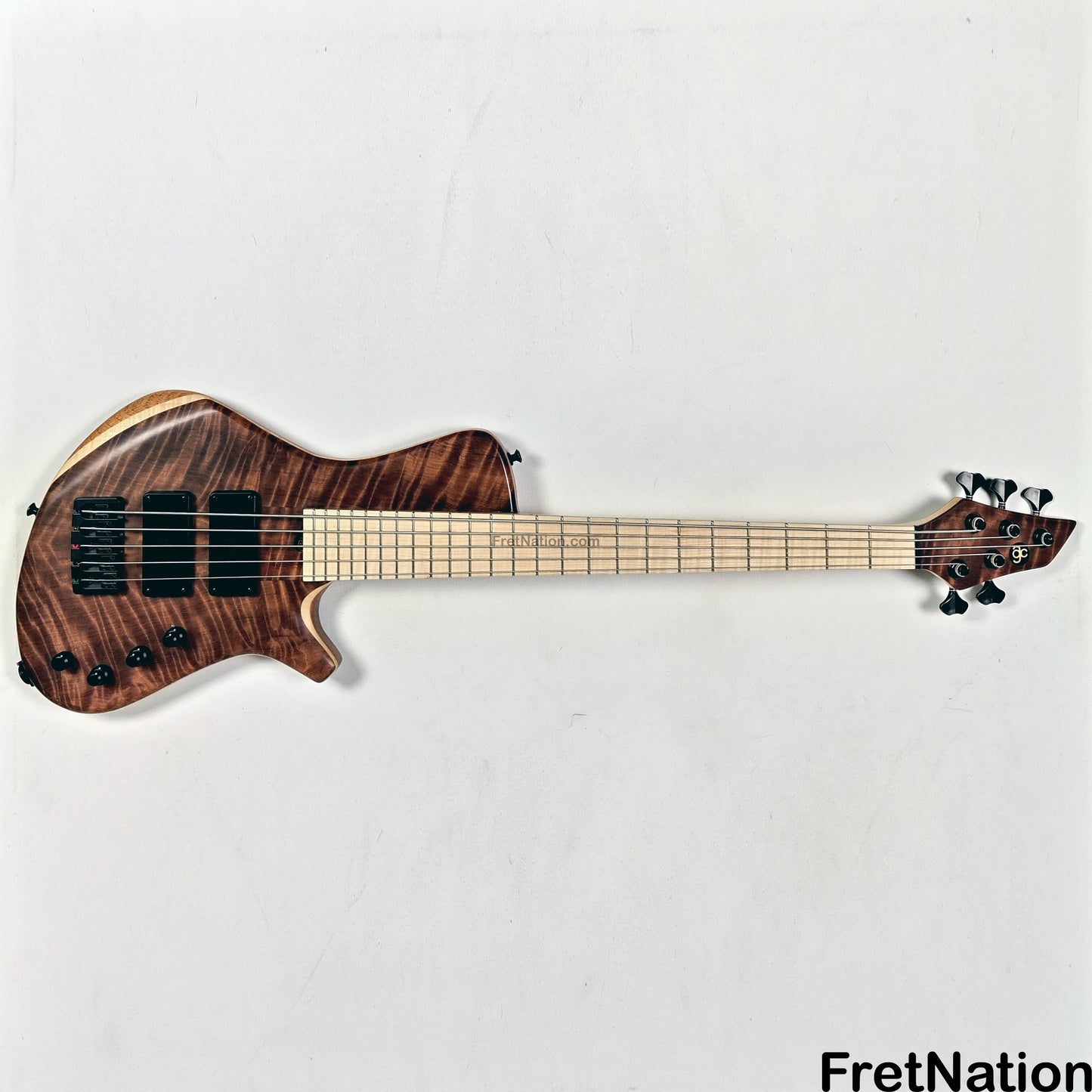

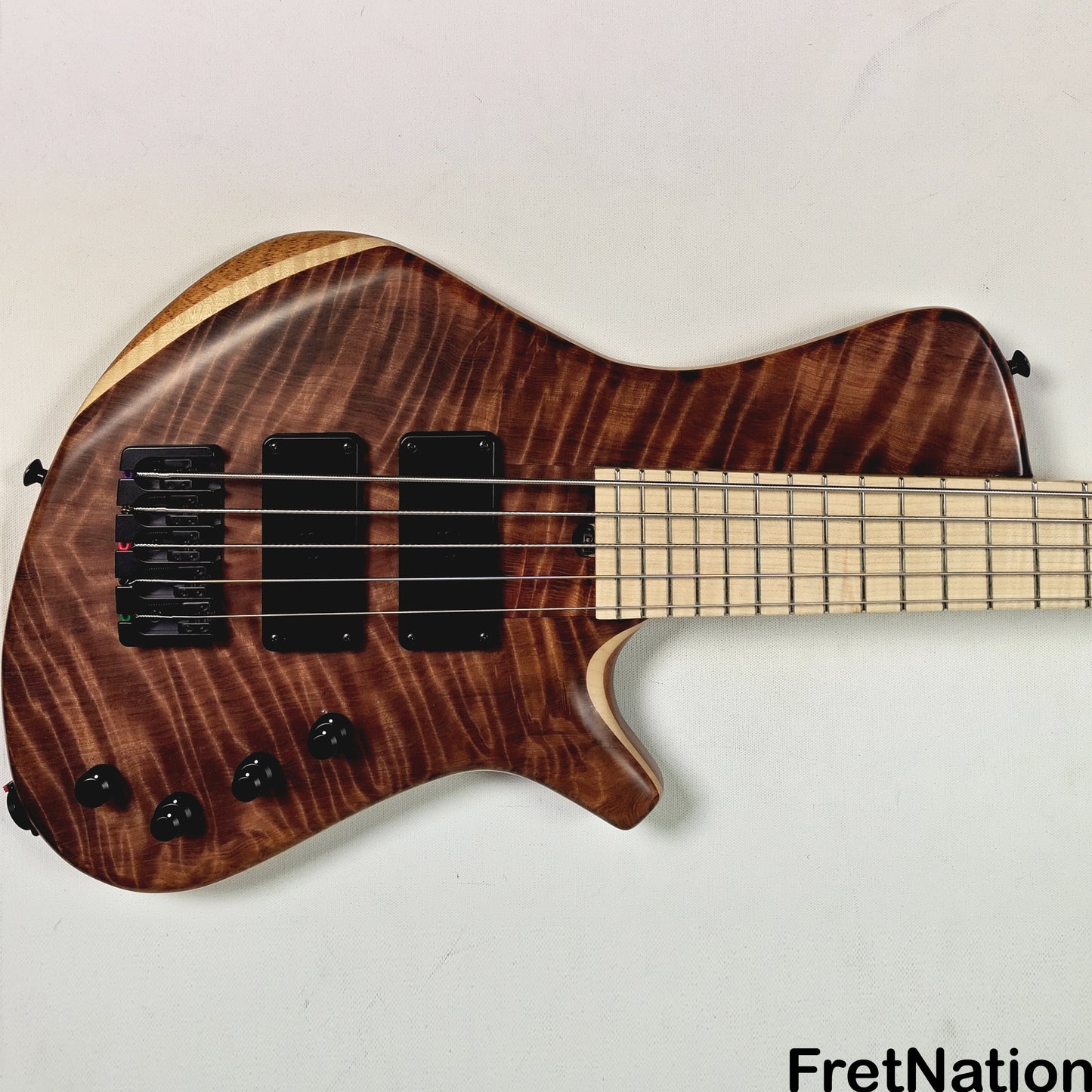

AC Guitars Finn R-Type 5-String 33" Scale Bass - NAMM 2026 Feature
Model: ACG Finn R Type Weight: 8.86 lbs
This Finn R Type showcases ACG's ability to blend classic tonal foundations with modern aesthetics and playability. The Spanish Cedar body core paired with Flame Redwood top and back, with a Sycamore accent veneer, creates a warm, resonant foundation with stunning grain patterns that catch the eye. The AI Flame Sycamore fingerboard continues the visual theme while providing smooth, fast playability. The combination of a PB split coil in the neck position and RFB humbucker at the bridge offers vintage Precision Bass warmth blended with ACG's signature high-fidelity clarity. The East Uni-Pre 4K preamp provides extensive tonal shaping with both active and passive modes, making this bass equally at home in the studio or on stage.
Finn R Type Specifications:
Strings: 5
Scale Length: 33"
Construction: Set Neck
Top Wood: Flame Redwood w/ Sycamore Accent
Body Core: Spanish Cedar

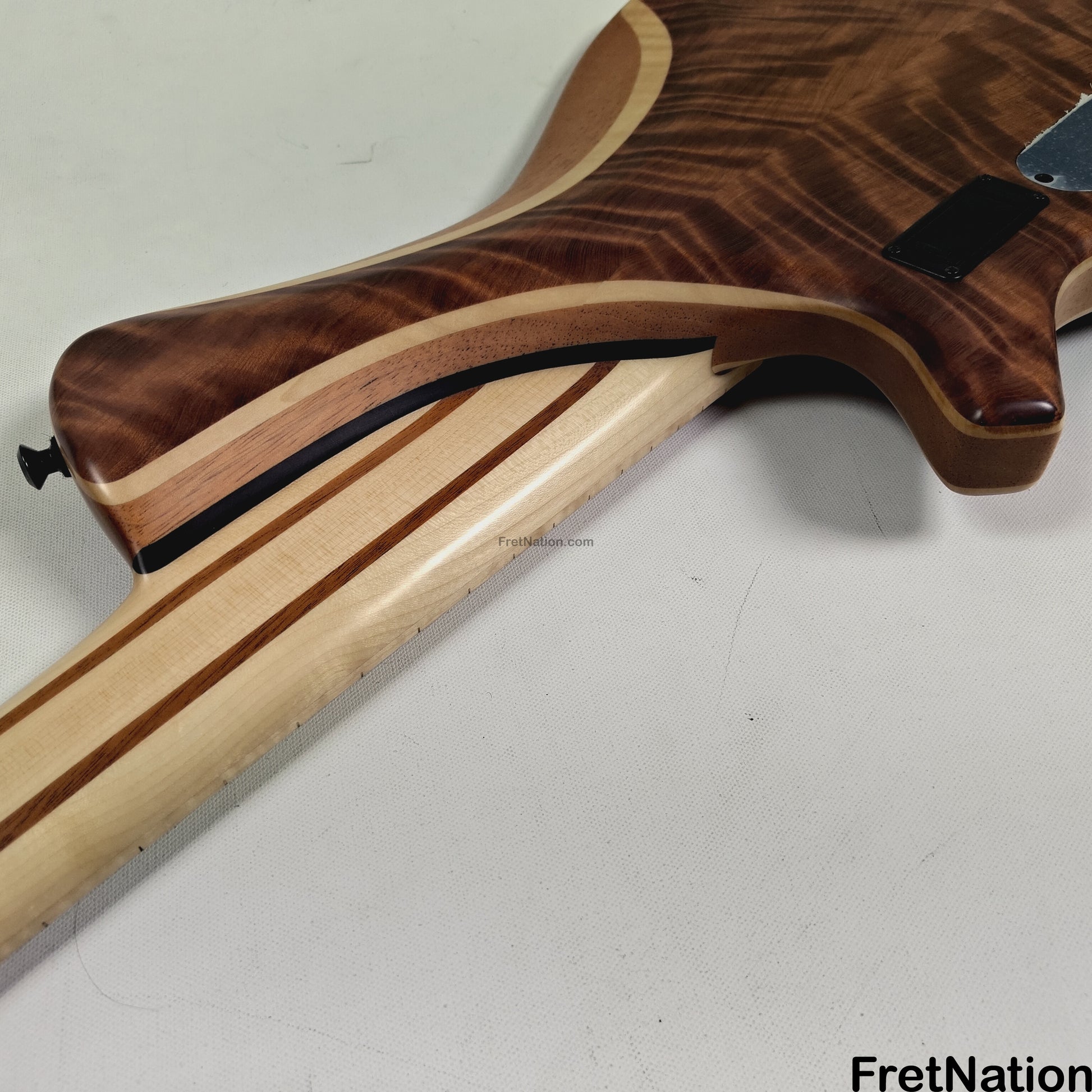

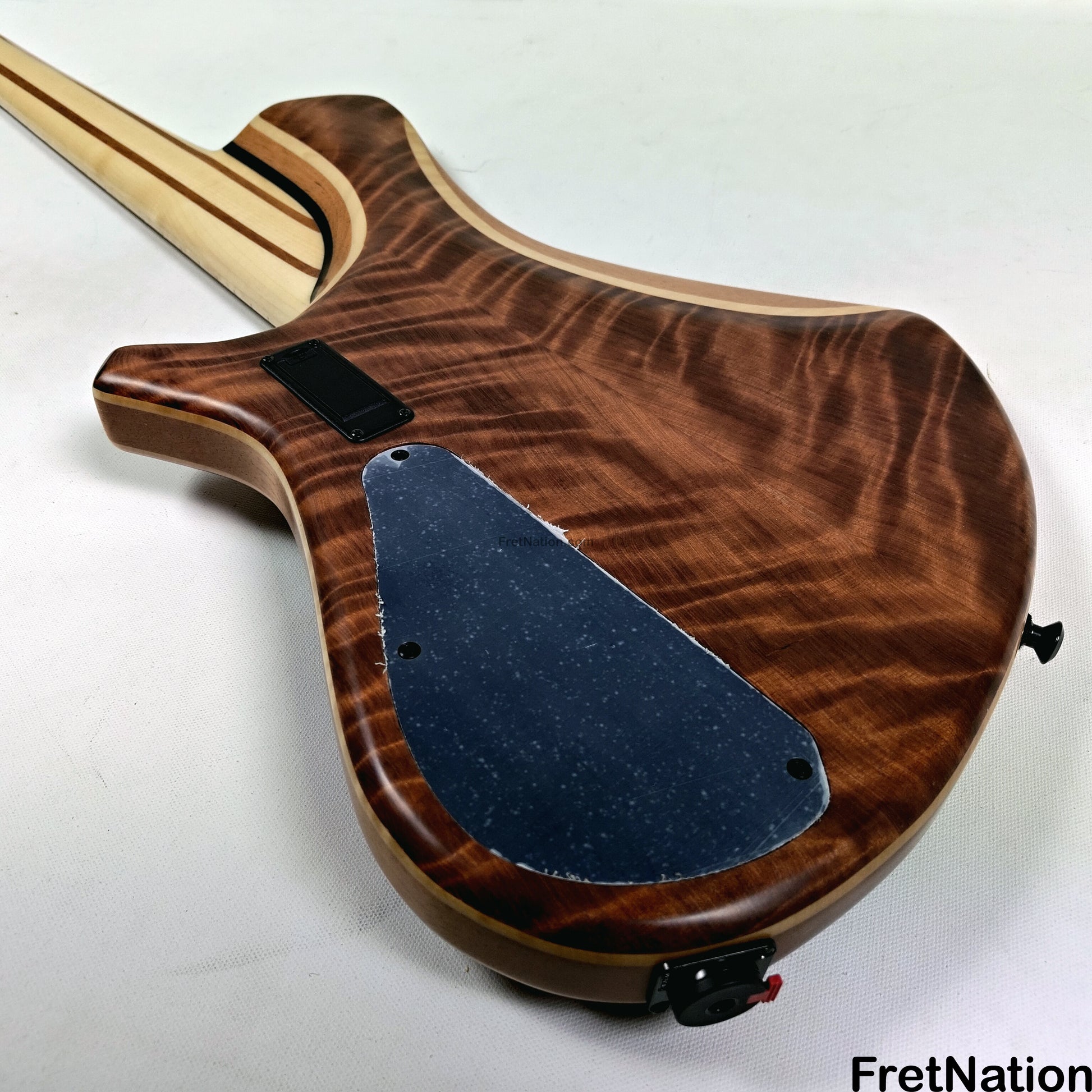

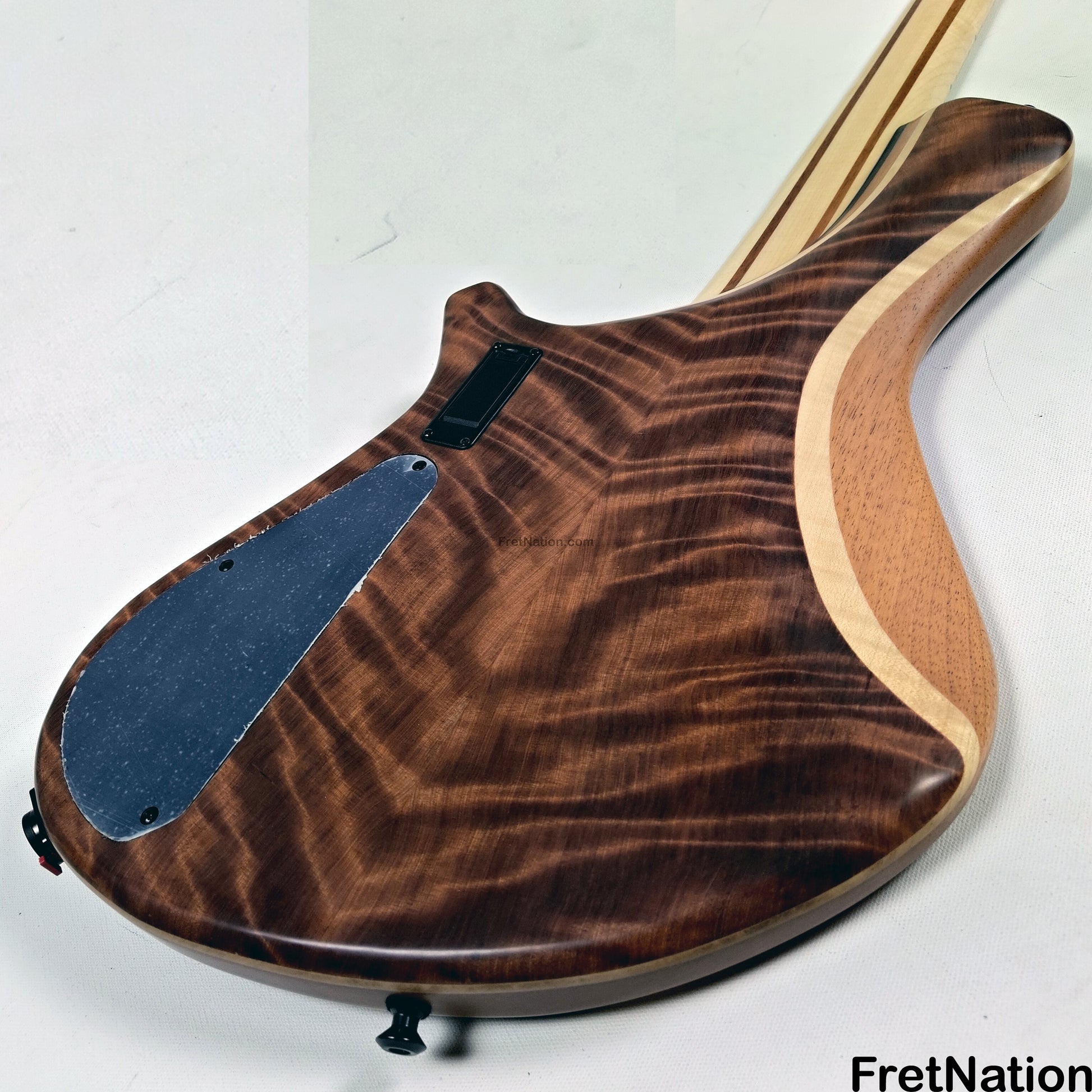

Back Wood: Flame Redwood w/ Sycamore Accent
Finish: Clear Satin Lacquer

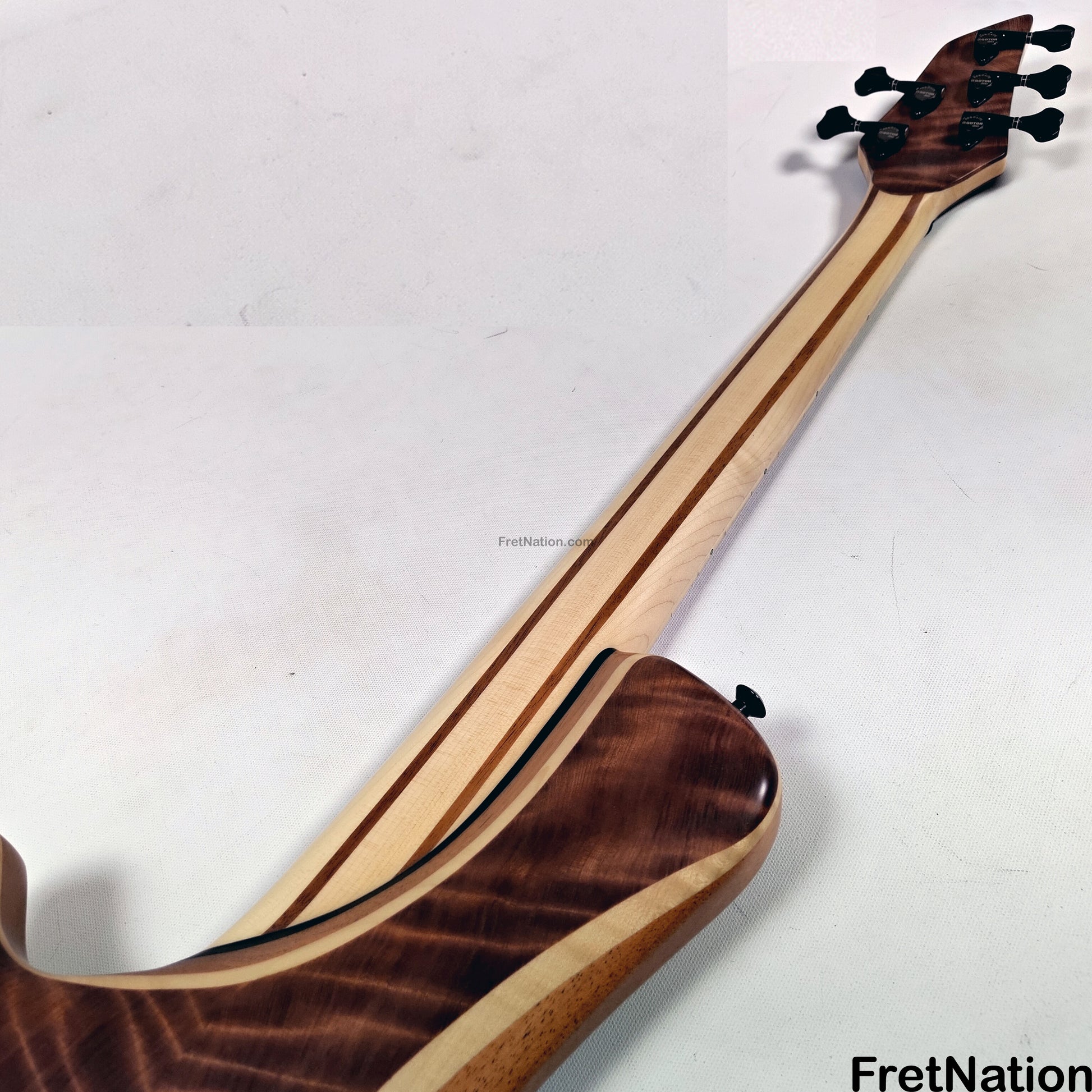

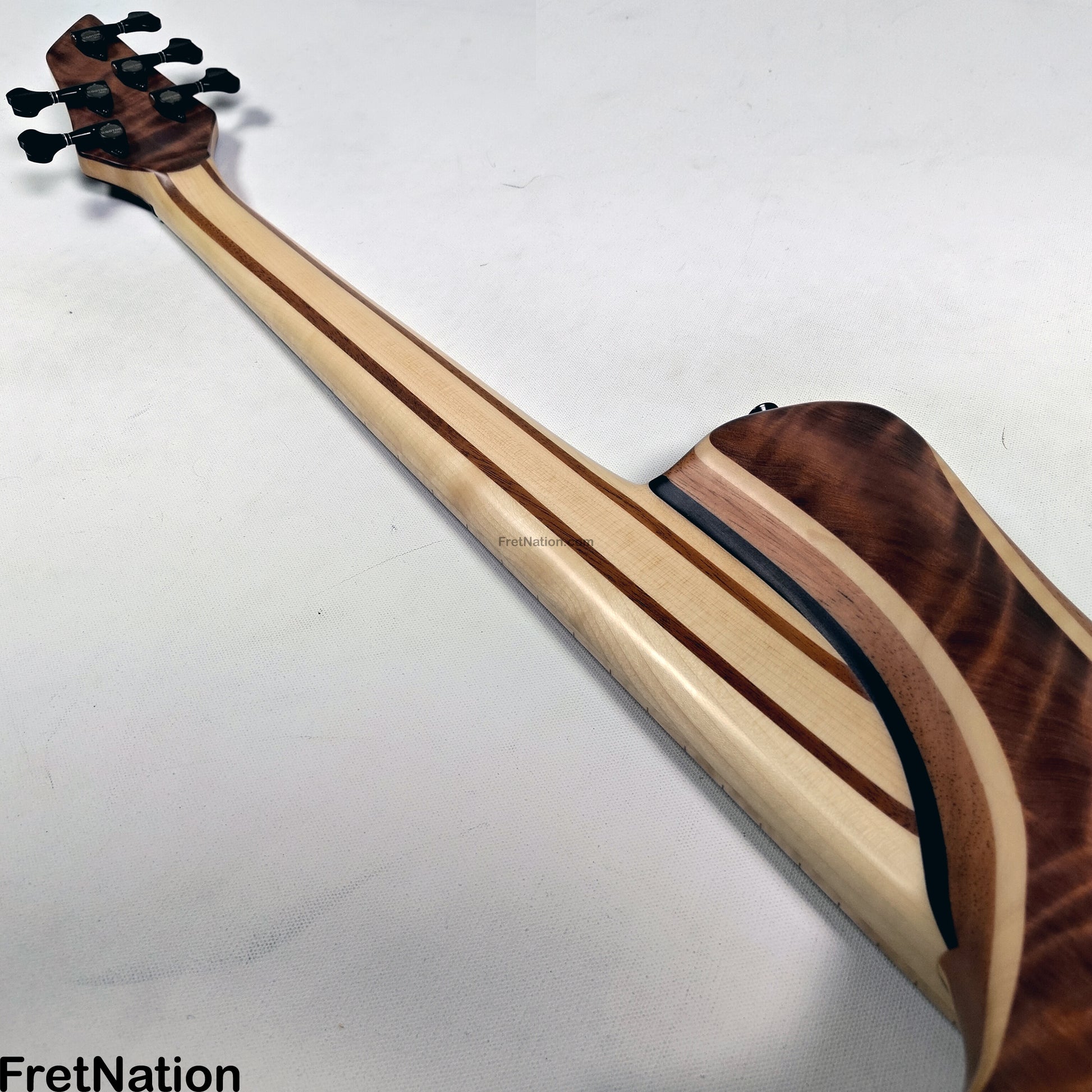

Neck: Maple / Mahogany
Neck Profile: Asymmetrical

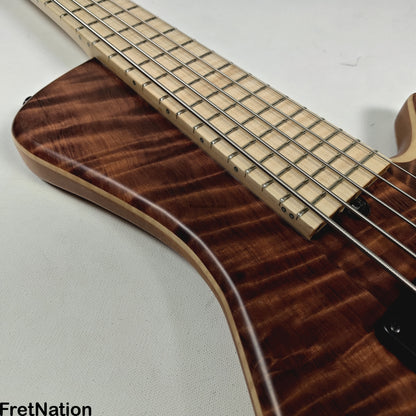

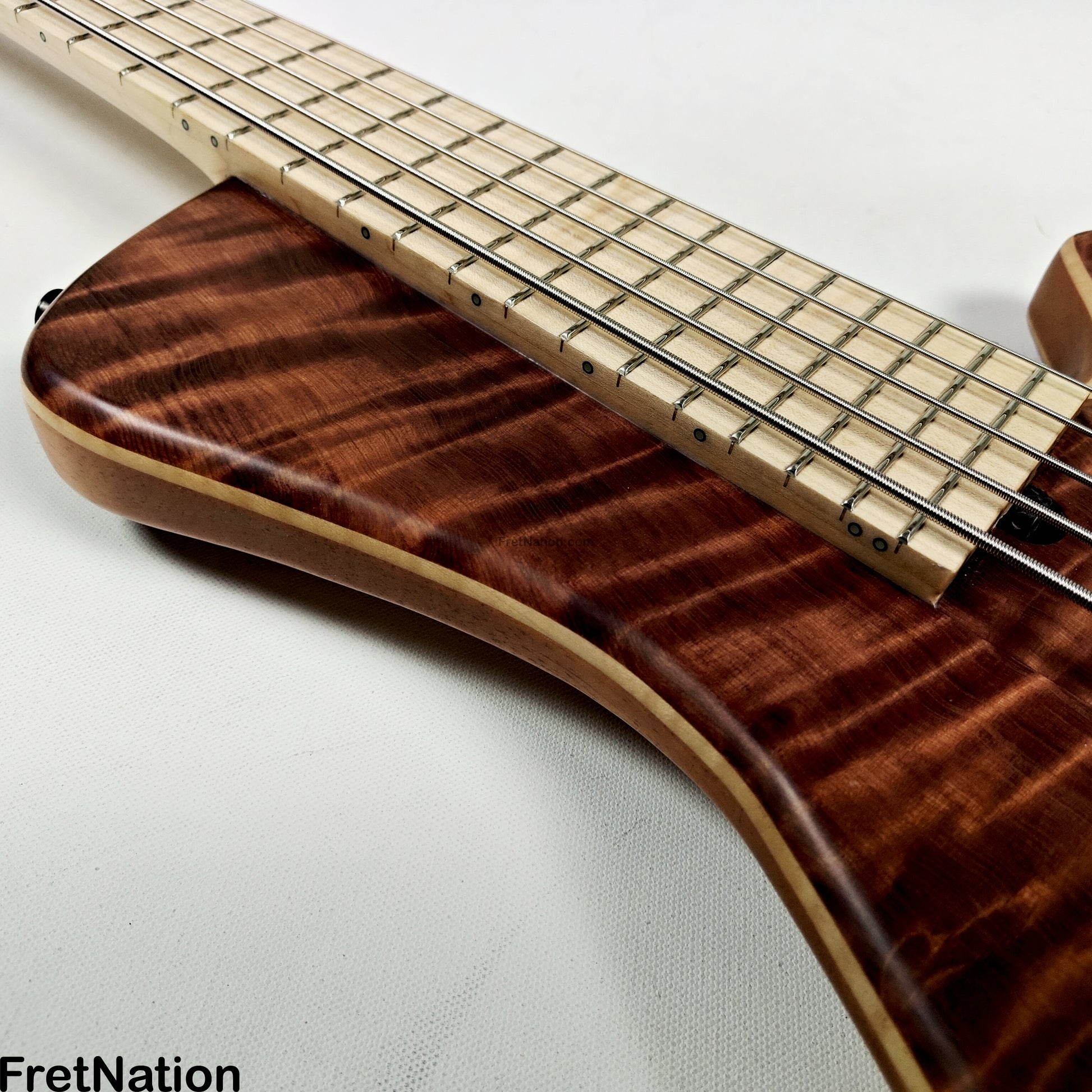

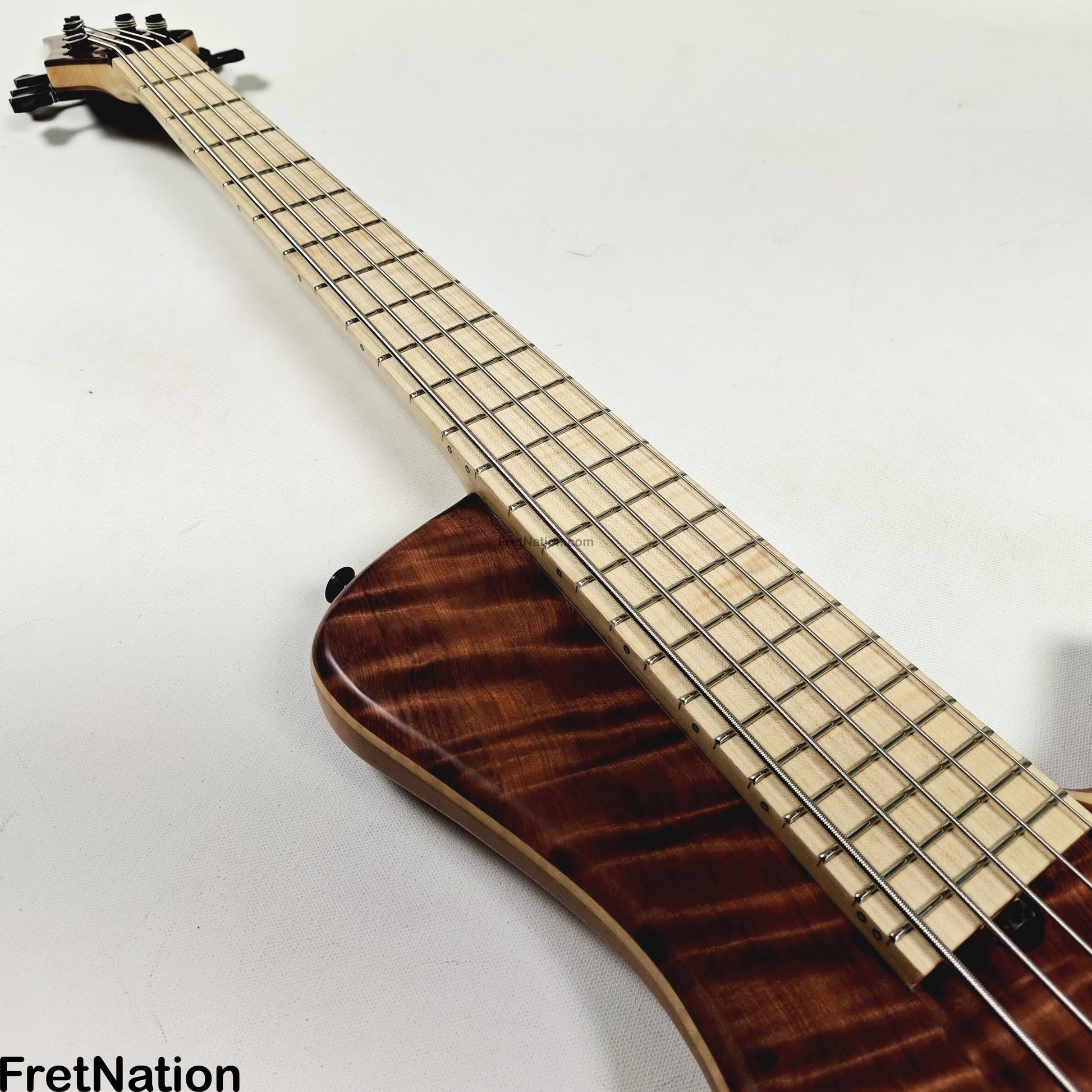

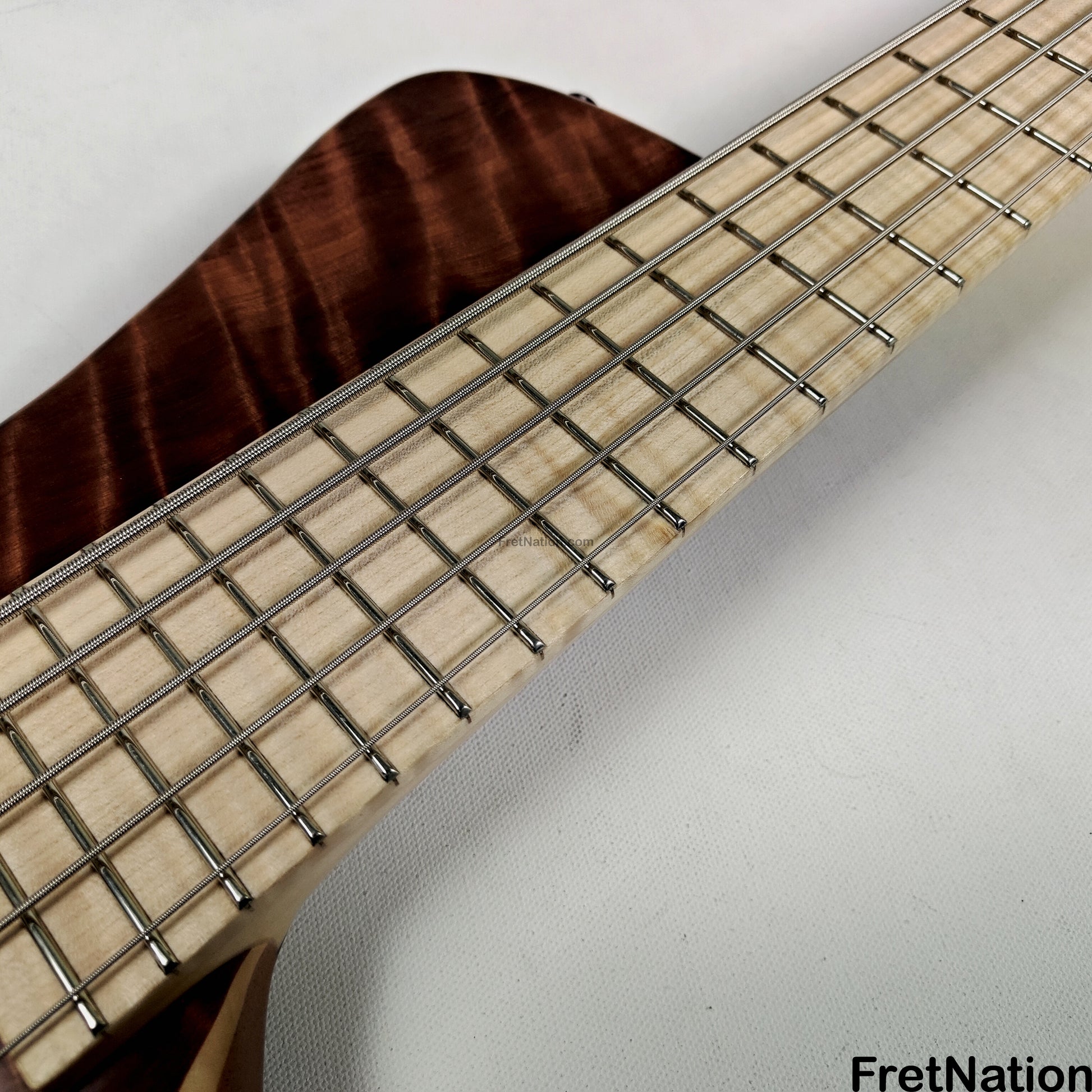

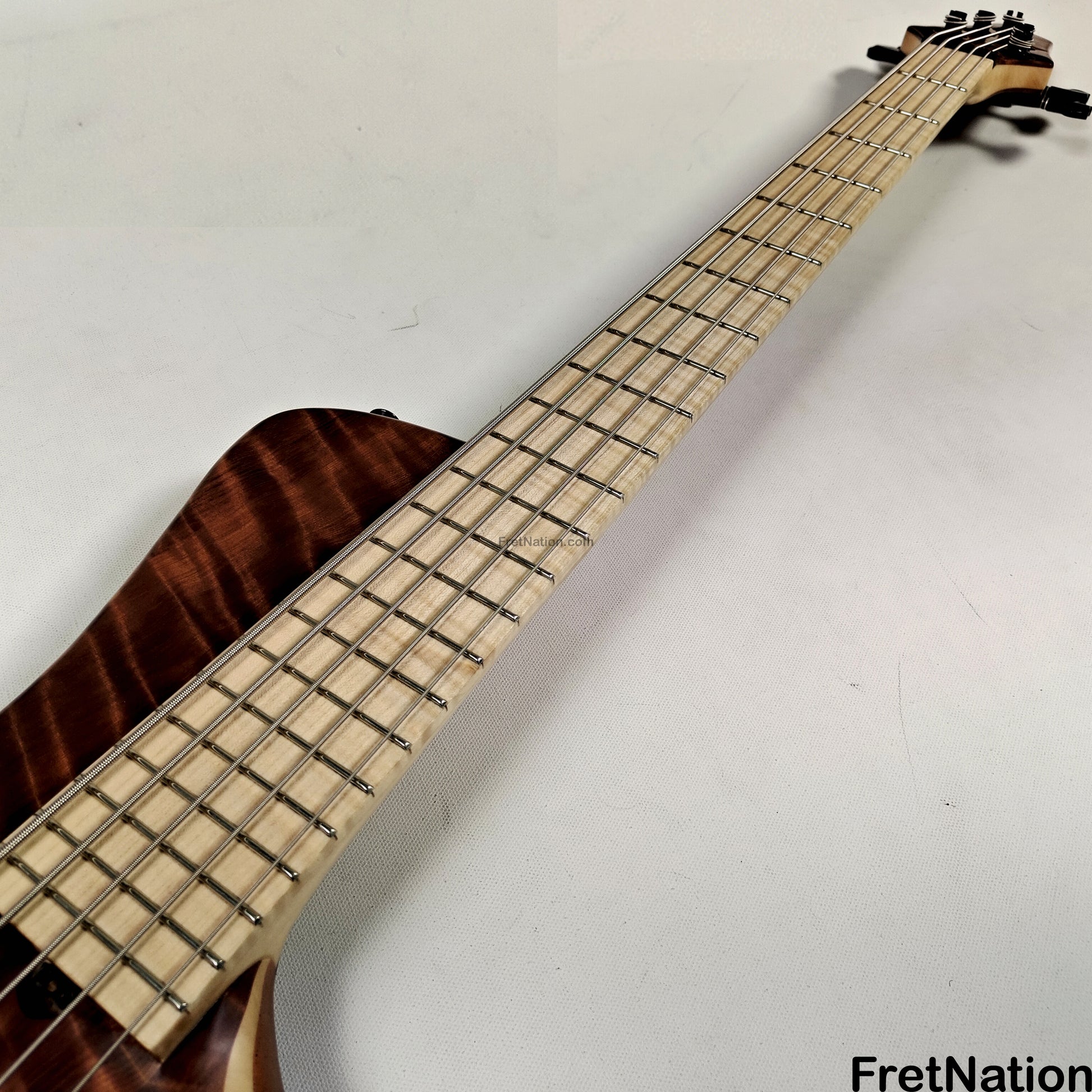

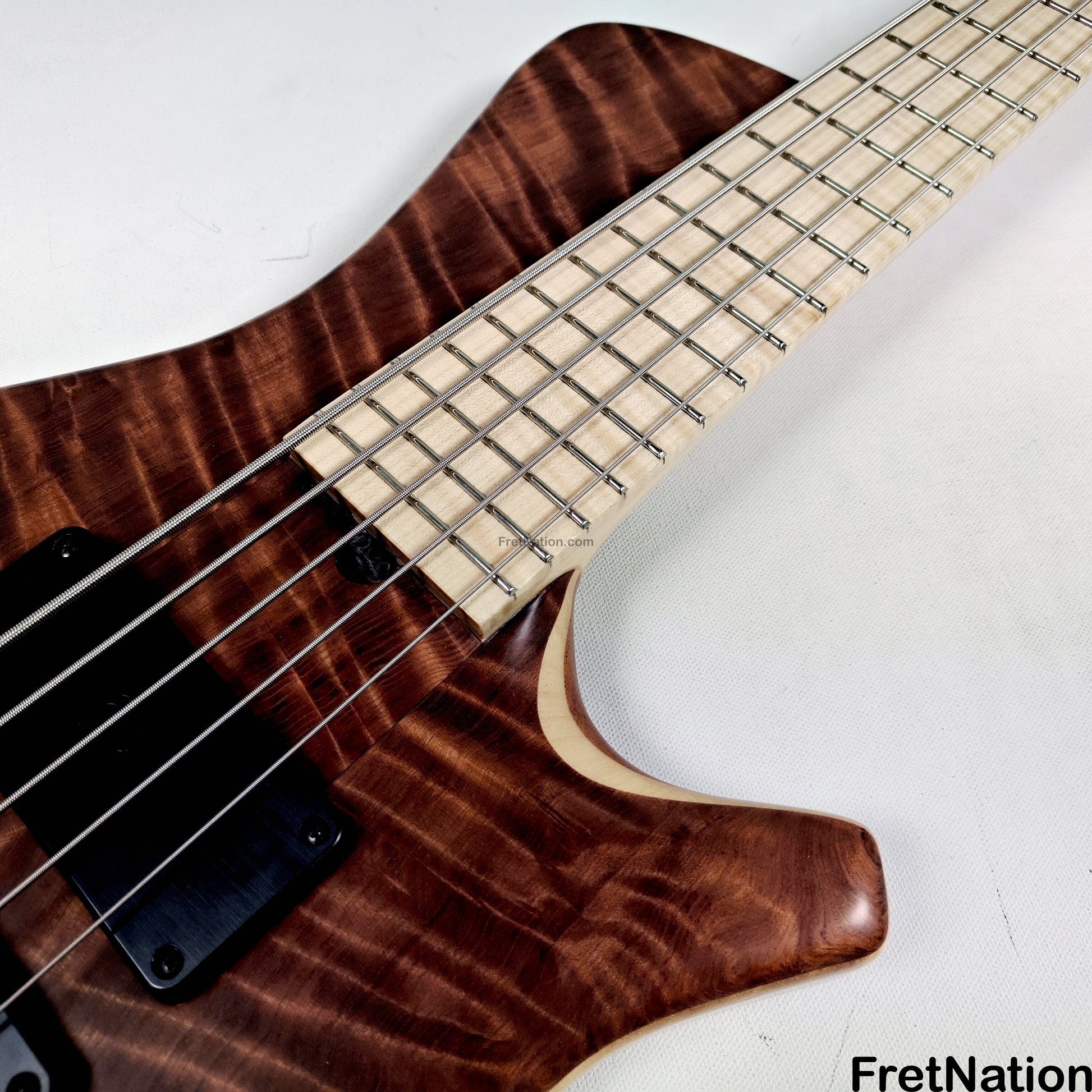

Fingerboard: Flame Sycamore (Acrylic Impregnated)
Radius: 30"
Side Dots: Luminlay

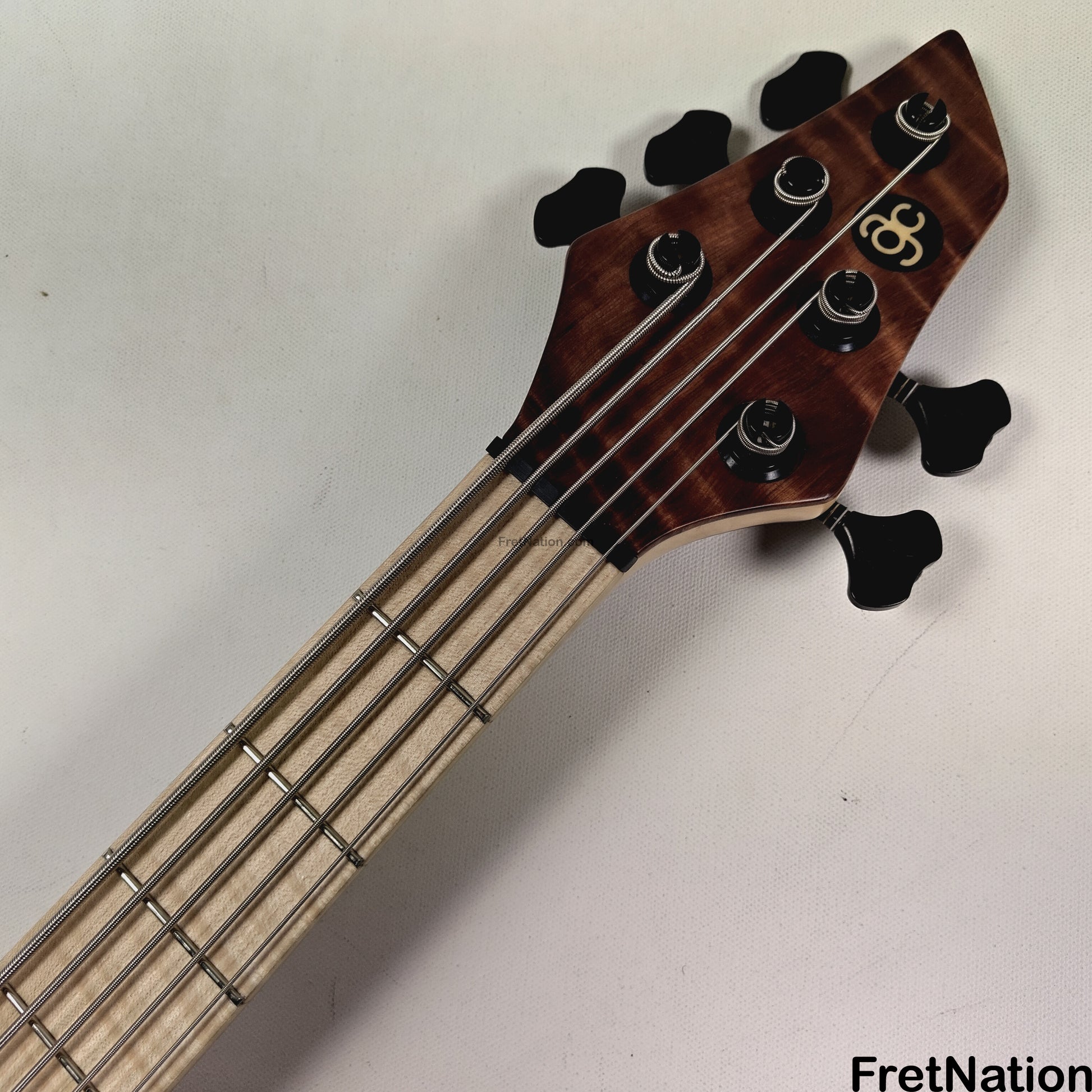

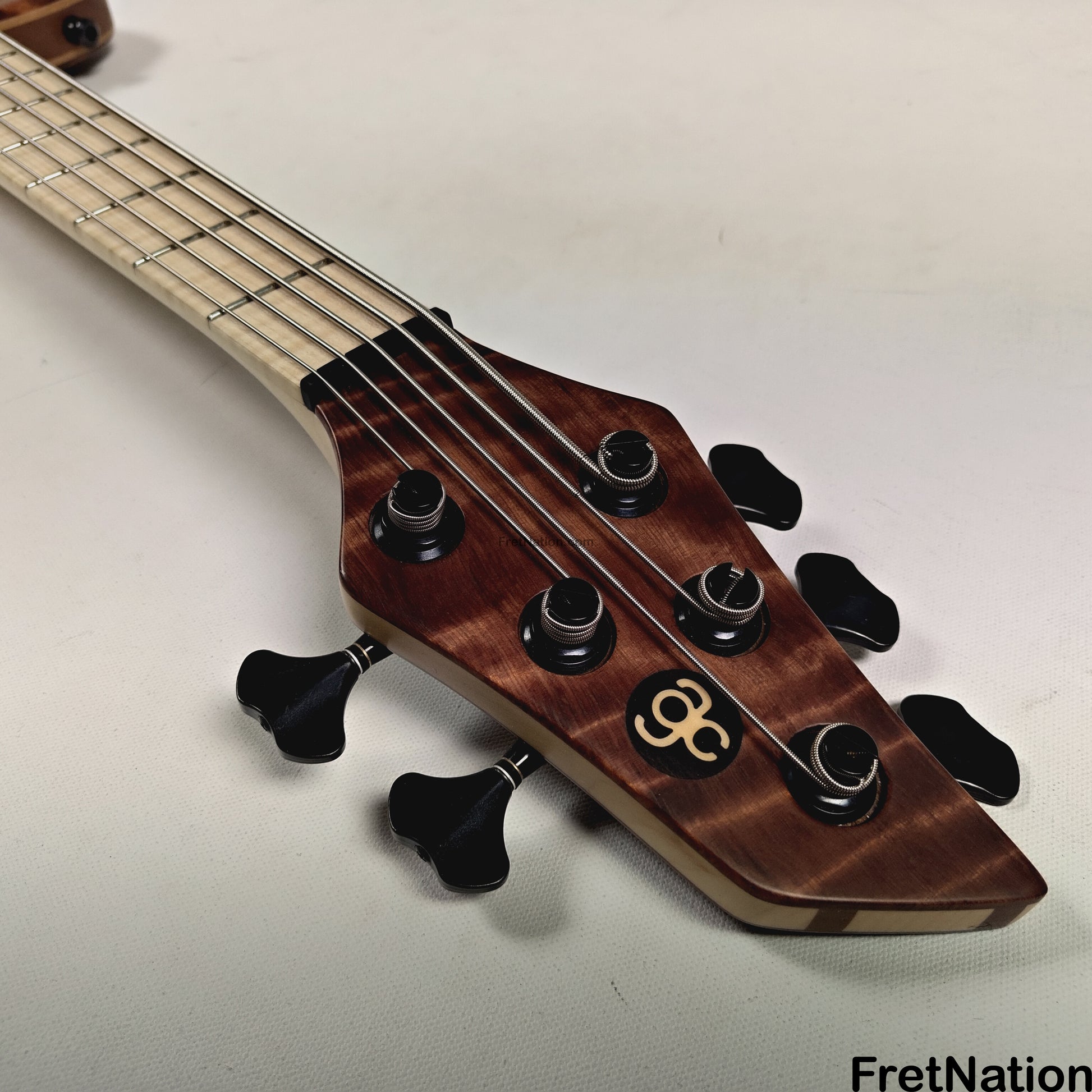

Headstock Face: Flame Redwood w/ Maple Veneer

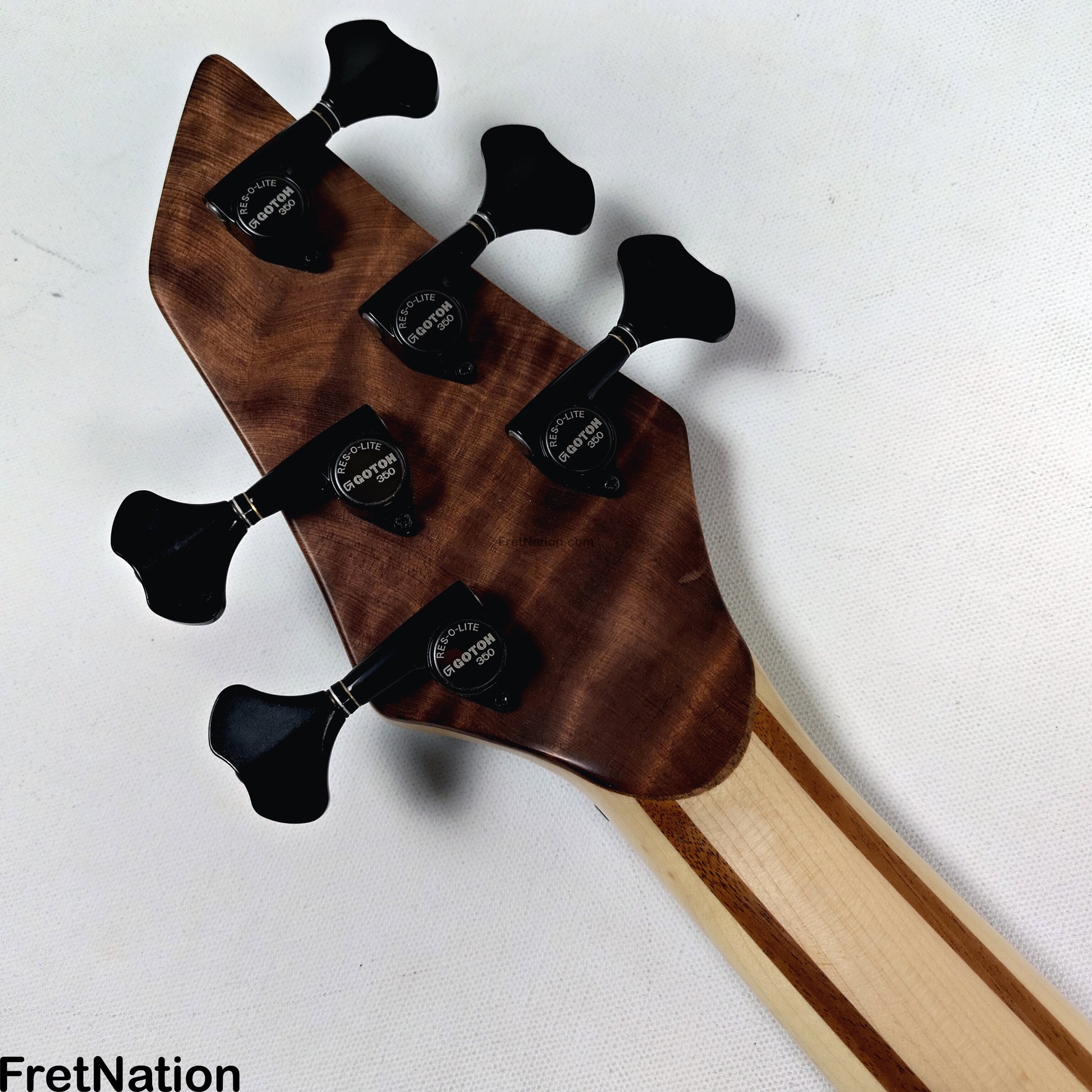

Headstock Back: Flame Redwood w/ Maple Veneer

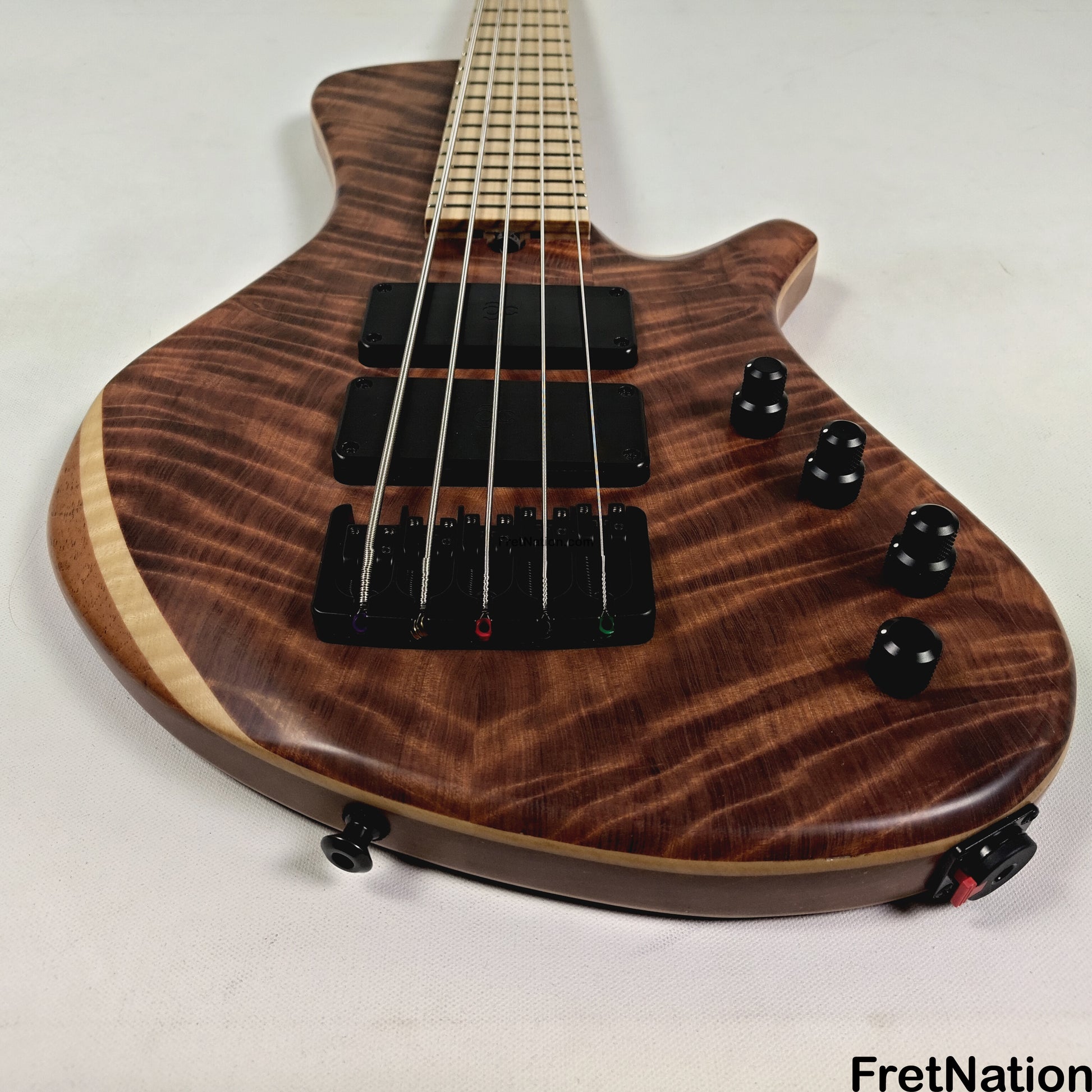

Bridge: ACG/Hipshot 18mm Spacing
Electronics: East Uni-Pre 4K 9v
Pickups:
Neck: PB Split Coil
Bridge: ACG RFB Humbucker
Gig Bag: Gator
Uni-Pre – Passive Mode
Active/Passive mode is selected via the push-pull toggle switch on the tone control
In Passive, the active circuit is bypassed and the signal is passed directly to the jack
When active is selected this brings preamp circuit into operation
Uni-Pre – Active Mode

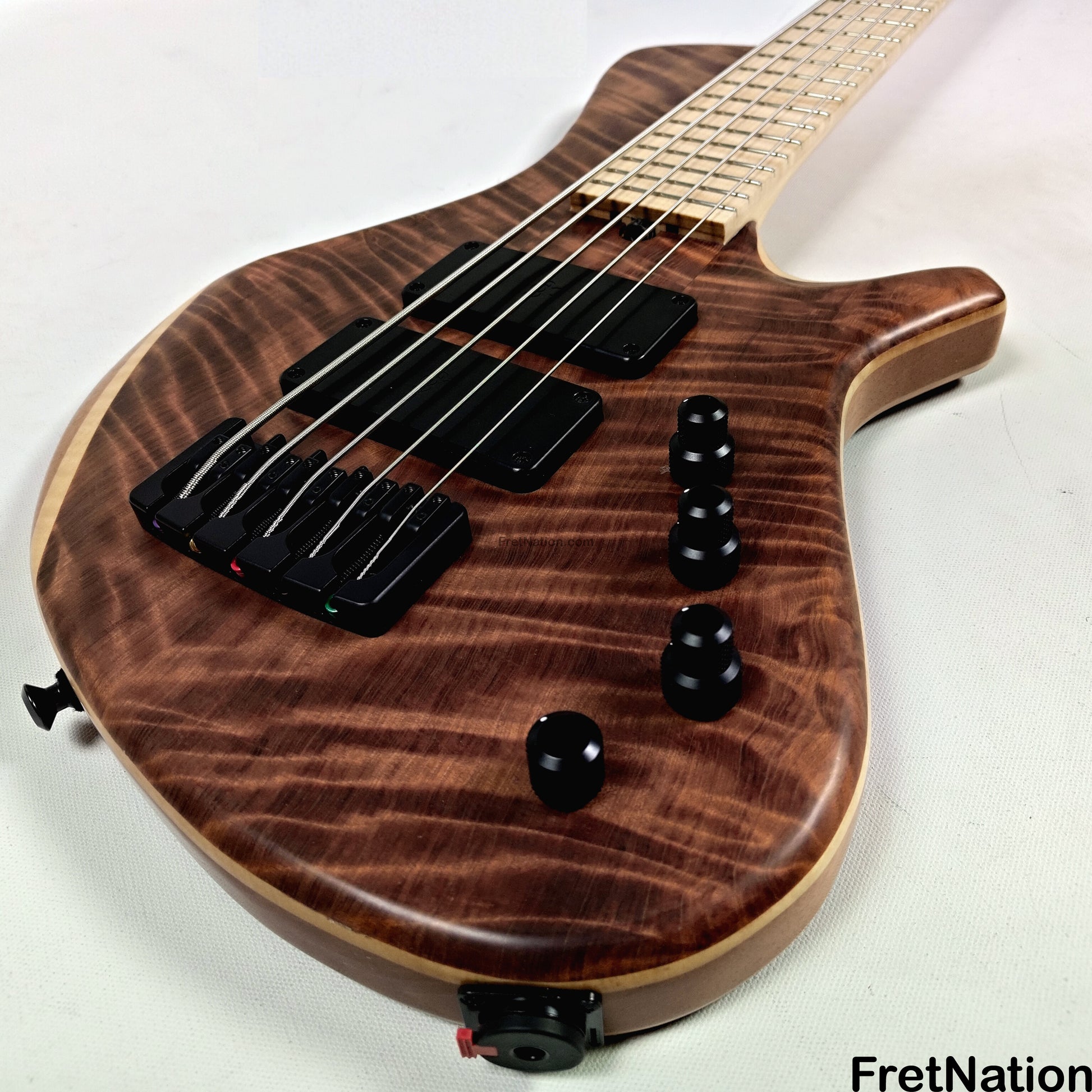

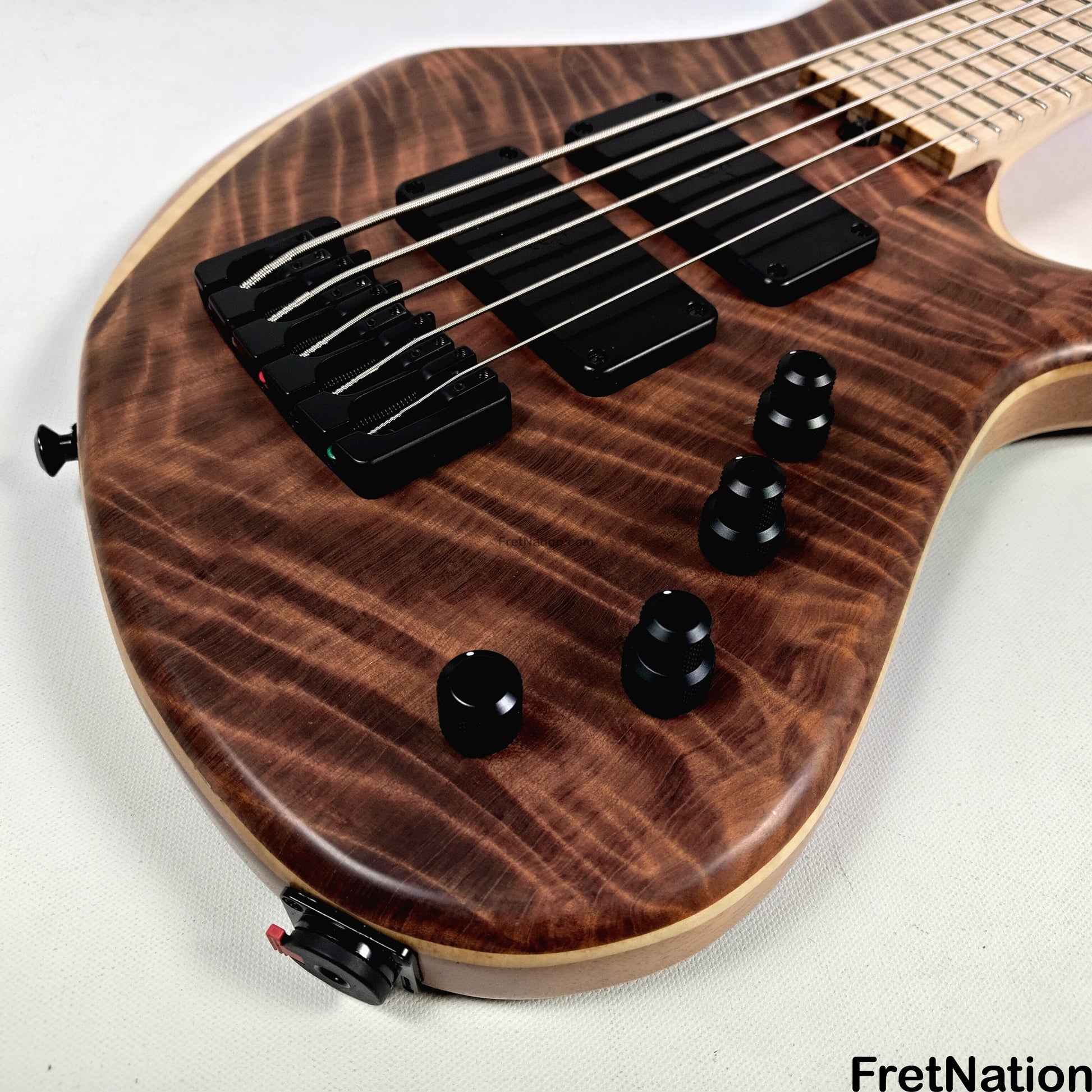

Volume Knob sets the output level for both active and passive paths
The Blend Knob sets both the active and passive blend mix for the pickups: ACW for bridge pickup alone and CW for the neck pickup alone. A click midway gives an equal mix of both pickups if they are balanced. Internal Gain Trims, 0-12dBs, allow the pickup levels to be adjusted and/or matched
Bass Boost/Cut or Boost only – set according to Jumper Link on circuit board. Controls the level of low end content according to the 'Bass Window' settings on the circuit board. A center click is included
Treble (Pull for Bright)/Cut knob, controls the higher frequency spectrum according to the setting of the internal Treble Shelf Frequency adjustment. Pull for Bright adds 'high end sizzle' sheen. A neutral setting is provided with a center click
Mid controls the level of Mid Boost/Cut at frequencies according to the setting of the Mid Frequency knob. A neutral setting is provided with a center click on the upper Boost/Cut knob
Tone Roll-off, set CW for no effect. Adjust ACW in order to mellow the treble and fully backed off for the 'darkest' sound. Push-pull toggle switch, pull for the Passive Signal path which consists of the Volume, Blend and Passive Tone. Push in for the full Active Signal path

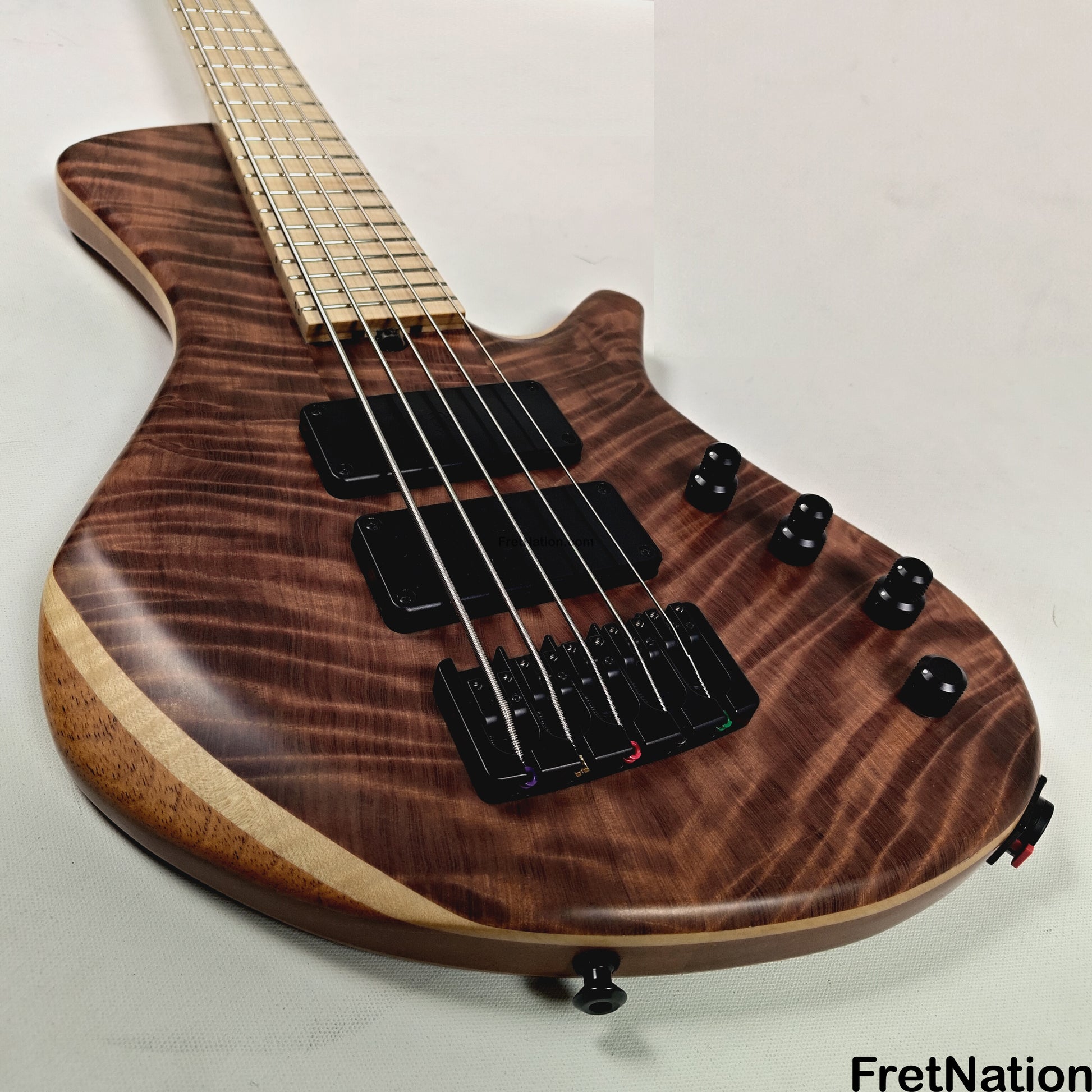

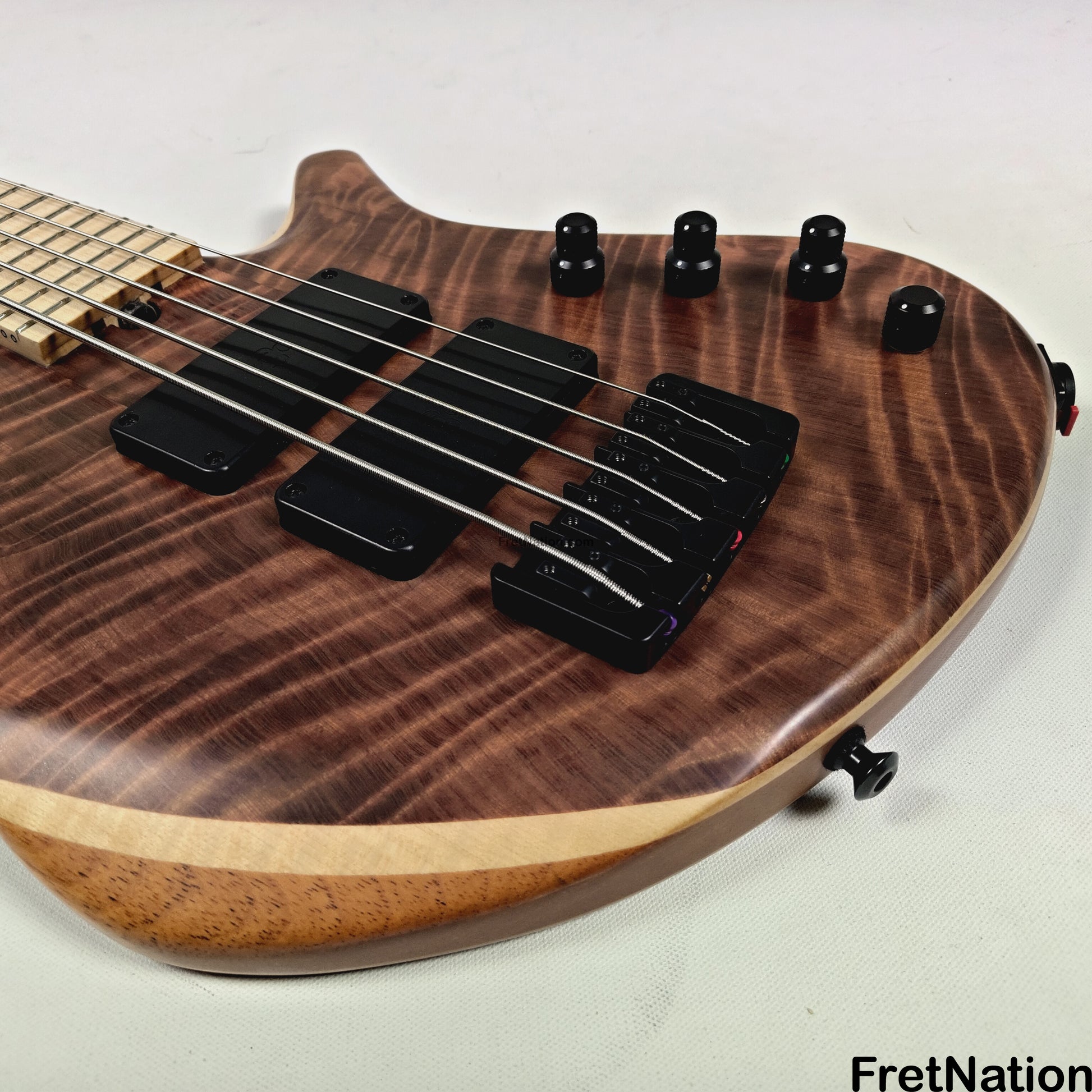

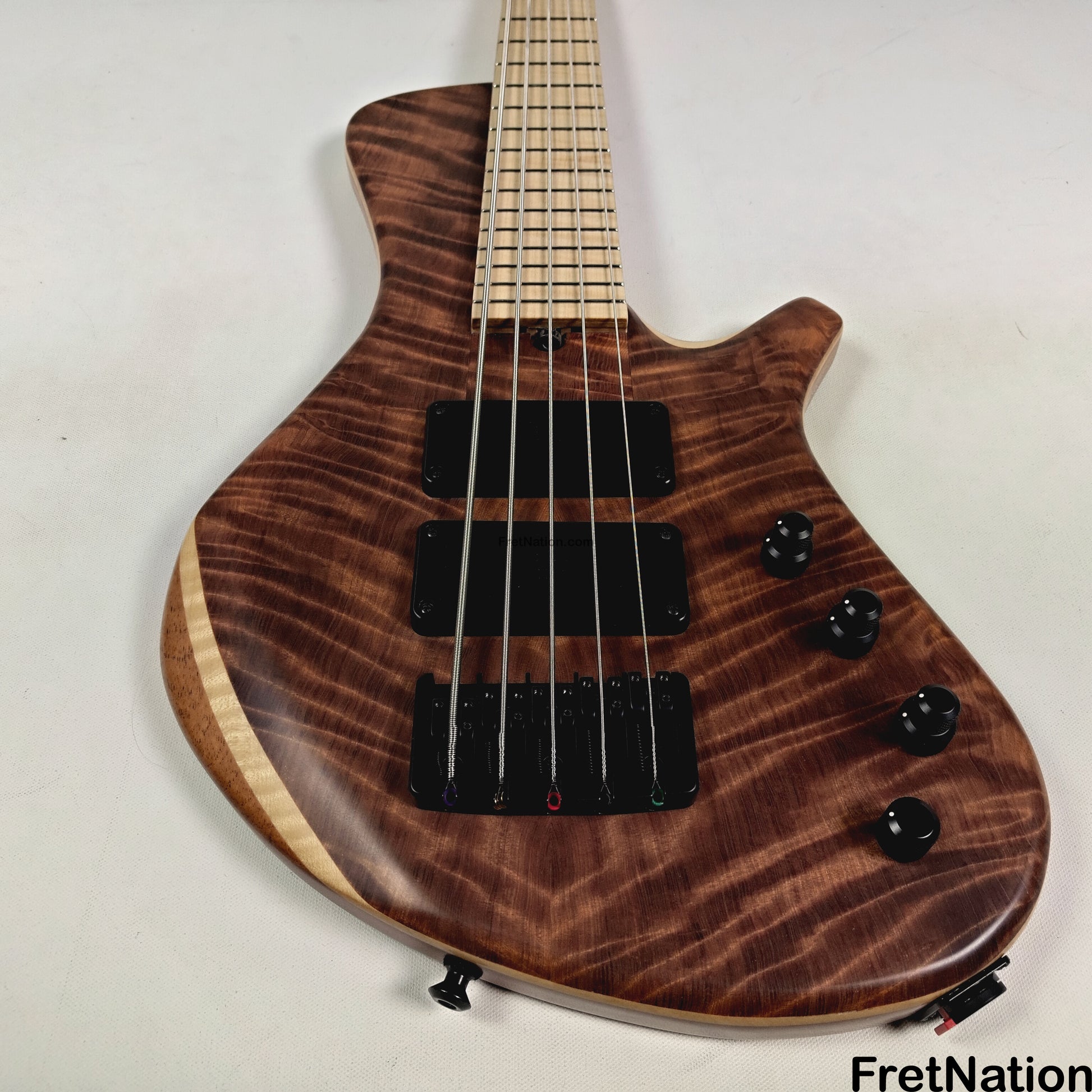

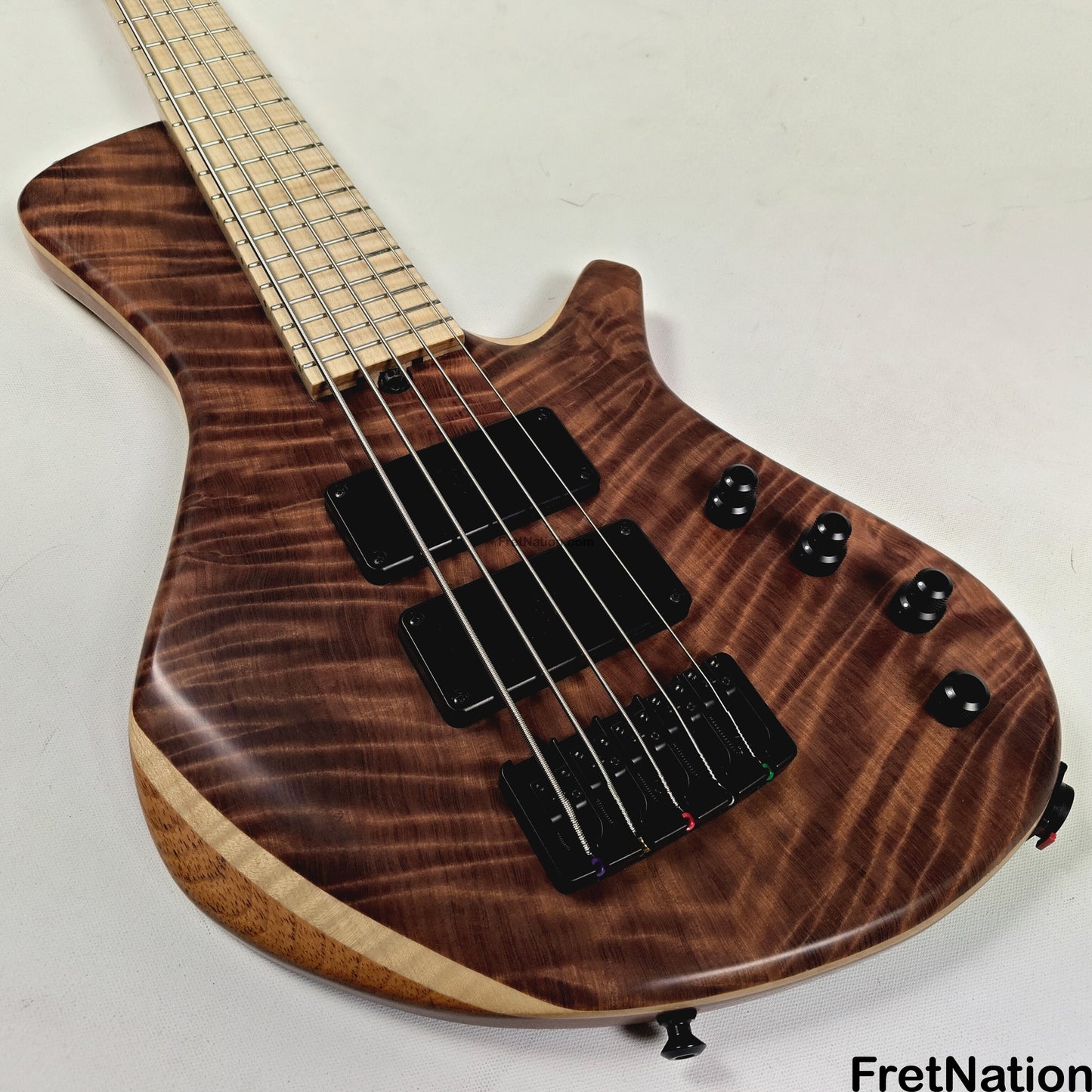

Pickup Configuration

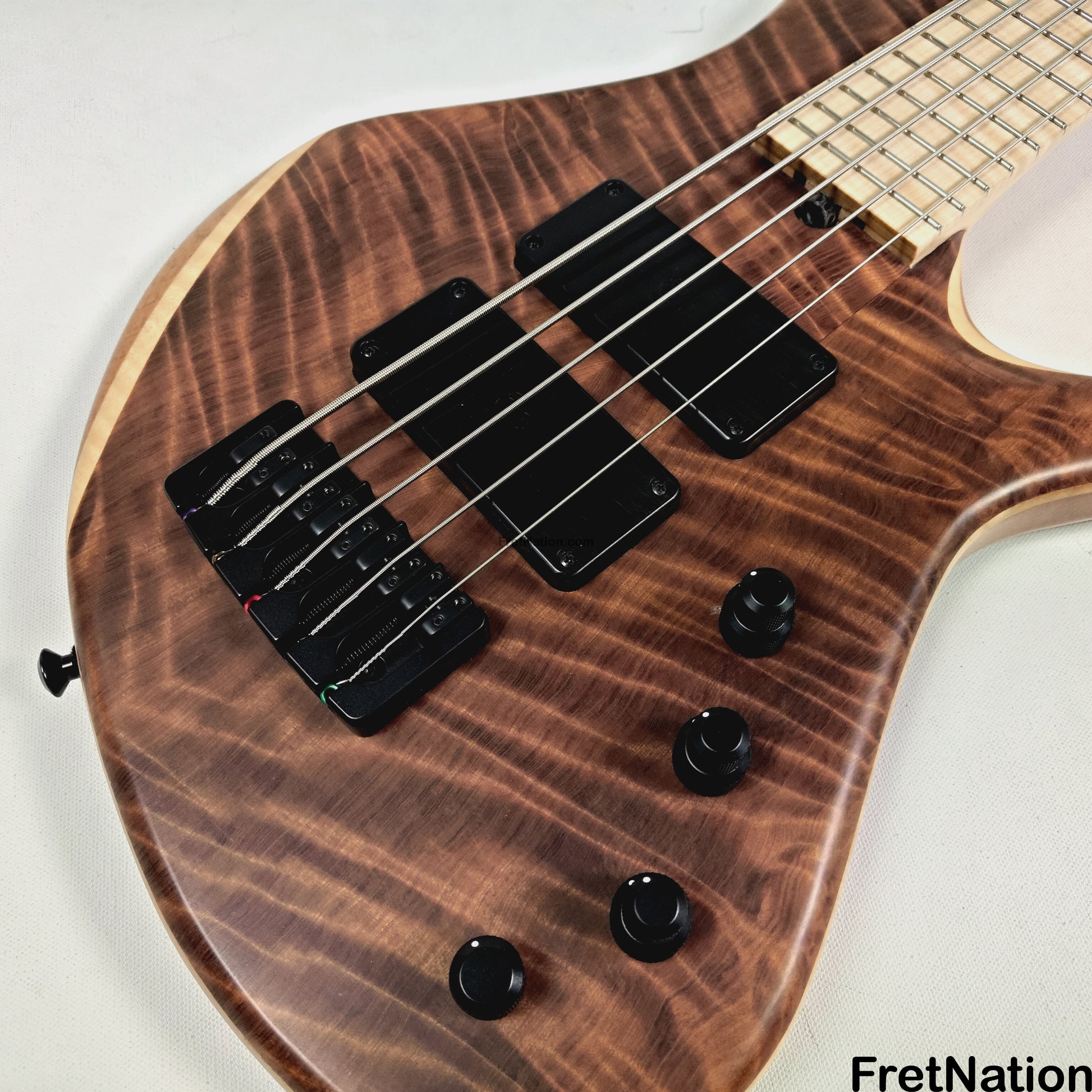

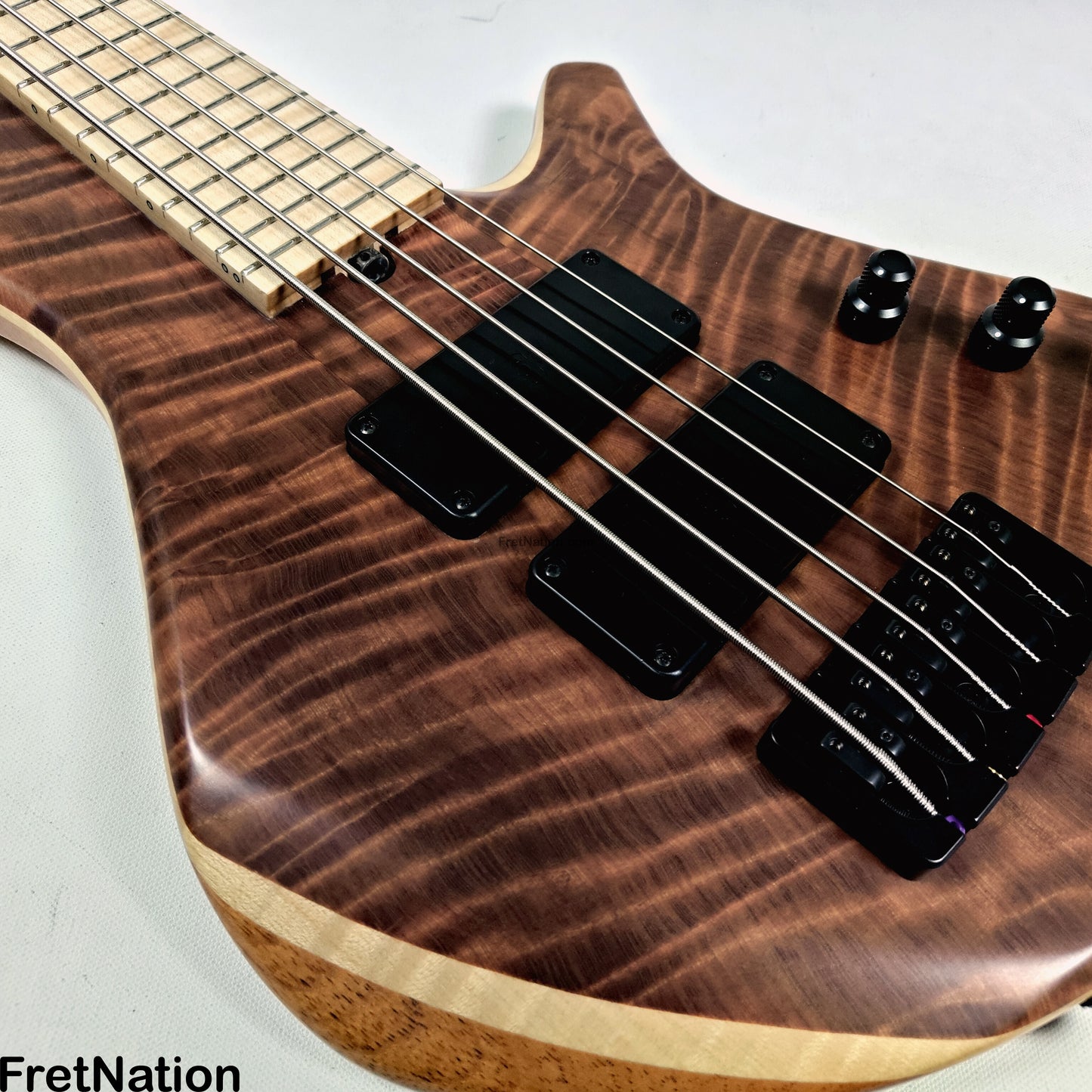

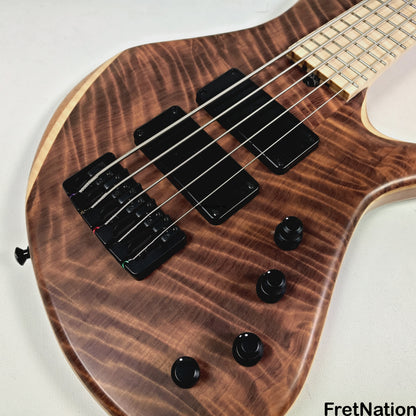

The PB split coil in the neck position delivers that iconic Precision Bass warmth and punch, while the ACG RFB humbucker at the bridge provides clarity and articulation. This combination offers vintage-inspired tones with modern flexibility, perfect for players who want classic sounds with contemporary versatility.
FretNation is the exclusive USA Dealer for AC Guitars. If this isn't your dream bass, reach out to us and we can work with you on the ACG of your dreams! Please do not hesitate to contact us to ask any questions.
